Wiring diagram for gti swift

[Kiwibrad]

Hi guys.
Wonder if anyone can help or put me in the right direction. I've lost my wiring diagram for my gti swift mk1 engine. Can't seem to find a replacement diagram. Think it's a 1986? Defintly mk1
Cheers

[Darrell]

I could not find a sa413 manual online anywhere
However I did manage to find the GTi supplement.
Again however It did not include the full size wiring diagram which I would expect to find
at the end of the manual

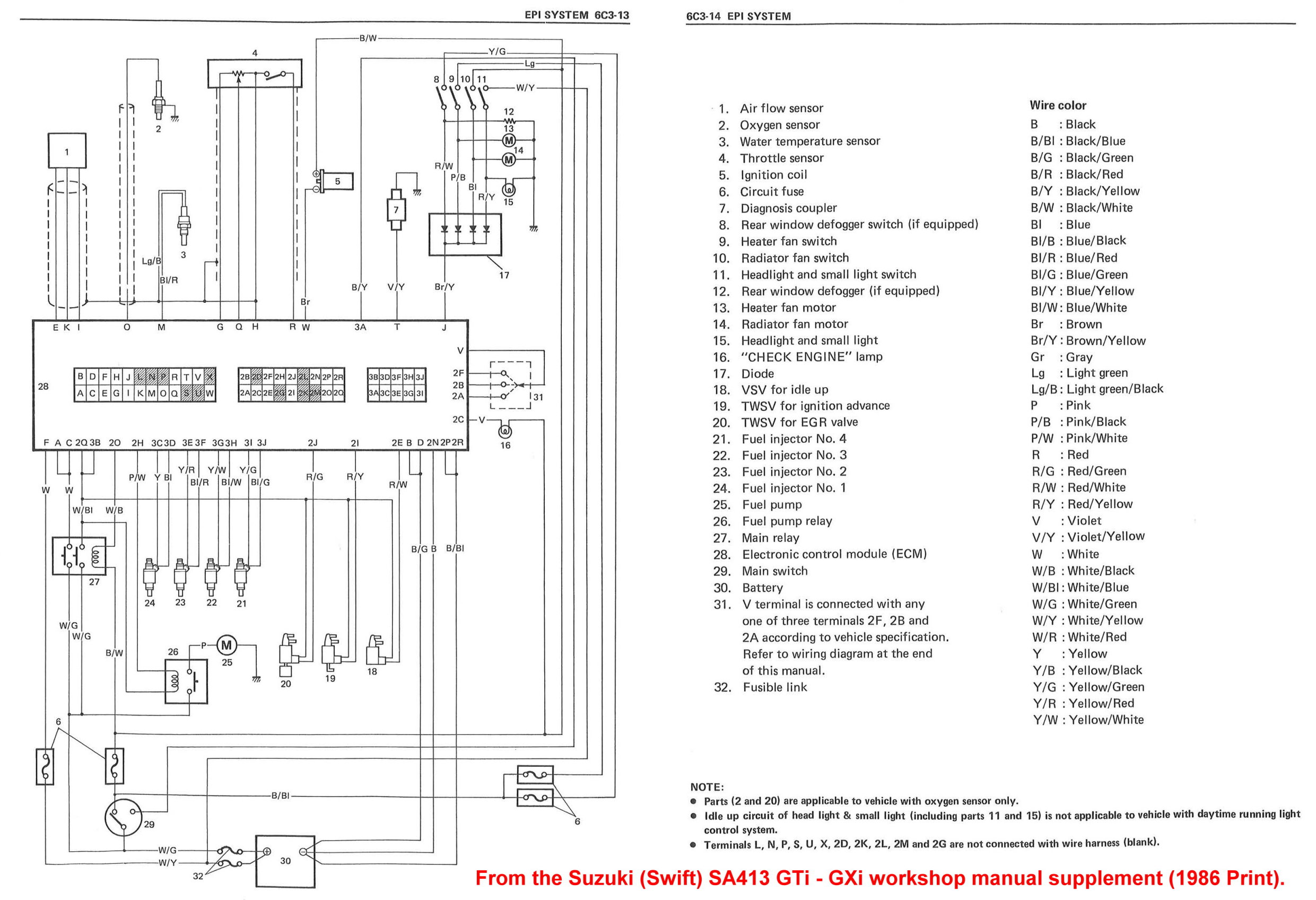

But I robbed this from the injection section, hope it shows what you want.

[Kiwibrad]

Thanks very much Darrell. It's not exactly the same but might just get me though! I've hunted the Internet hard so most impressed with that.
Thanks again!

[ScottieJ]

Is there nothing on teamswift.net or redlinegti?

[Kiwibrad]

I did look through that quickly. Couldn't find mk 1. Found Mk 2 or 3 easy enough. Was going to put the question to them but will try what darell found when I'm back at the truck. Got most of it worked out with the diagram found off Internet. Got spark and fuel but no go. Few more checks needed but the right diagram will give a bit more confidence.
