Vitara suspension bushes

Post by Darrell » Sat May 11, 2013 8:21 pm

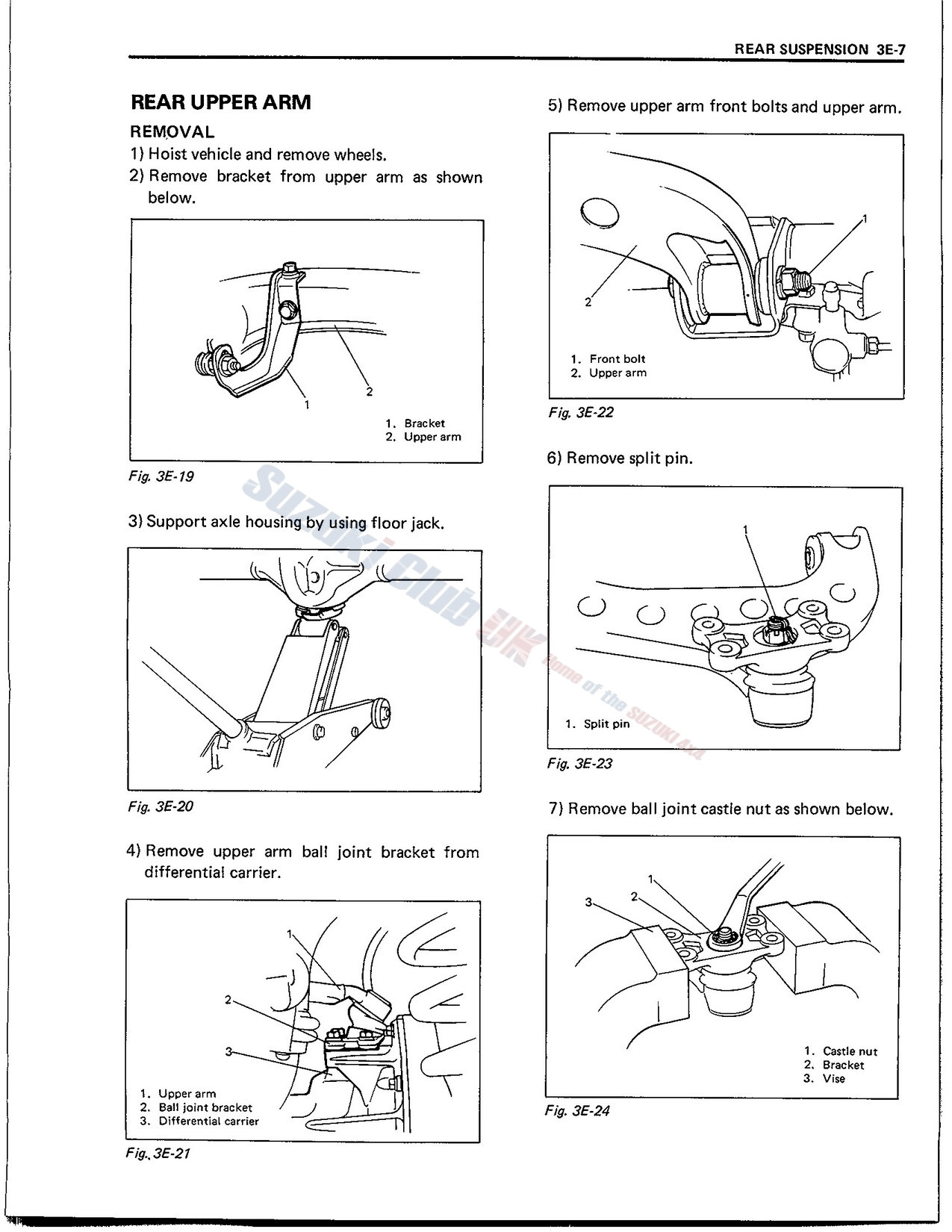

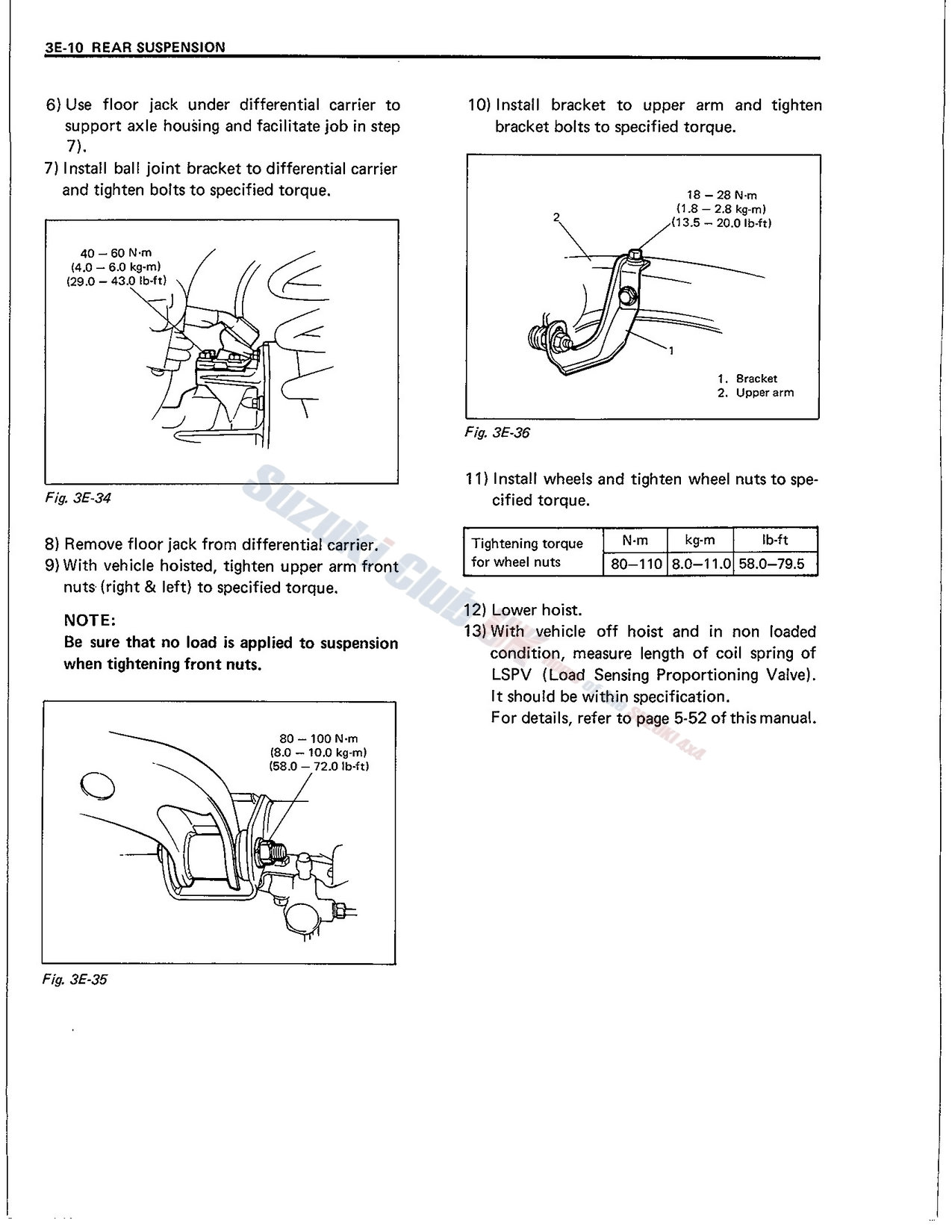

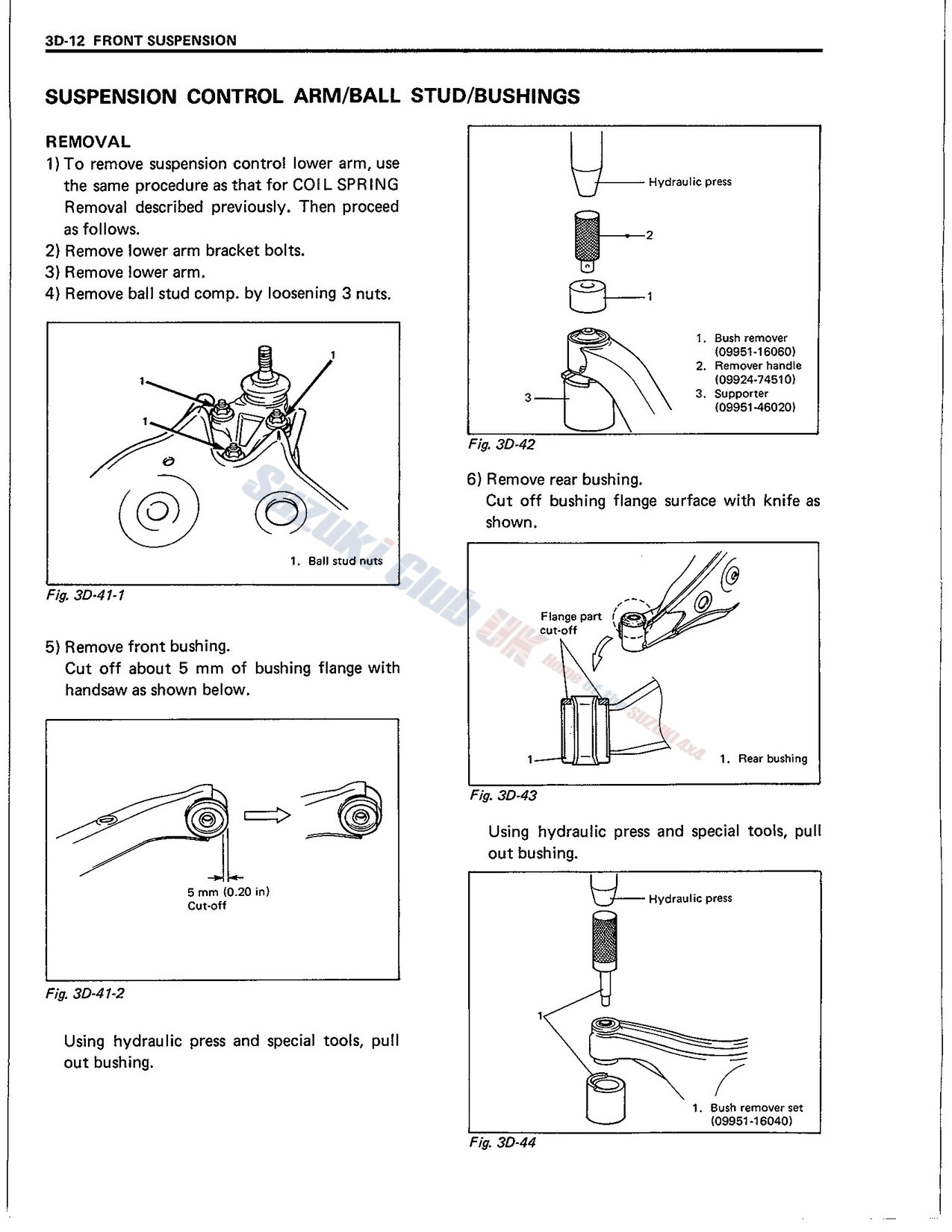

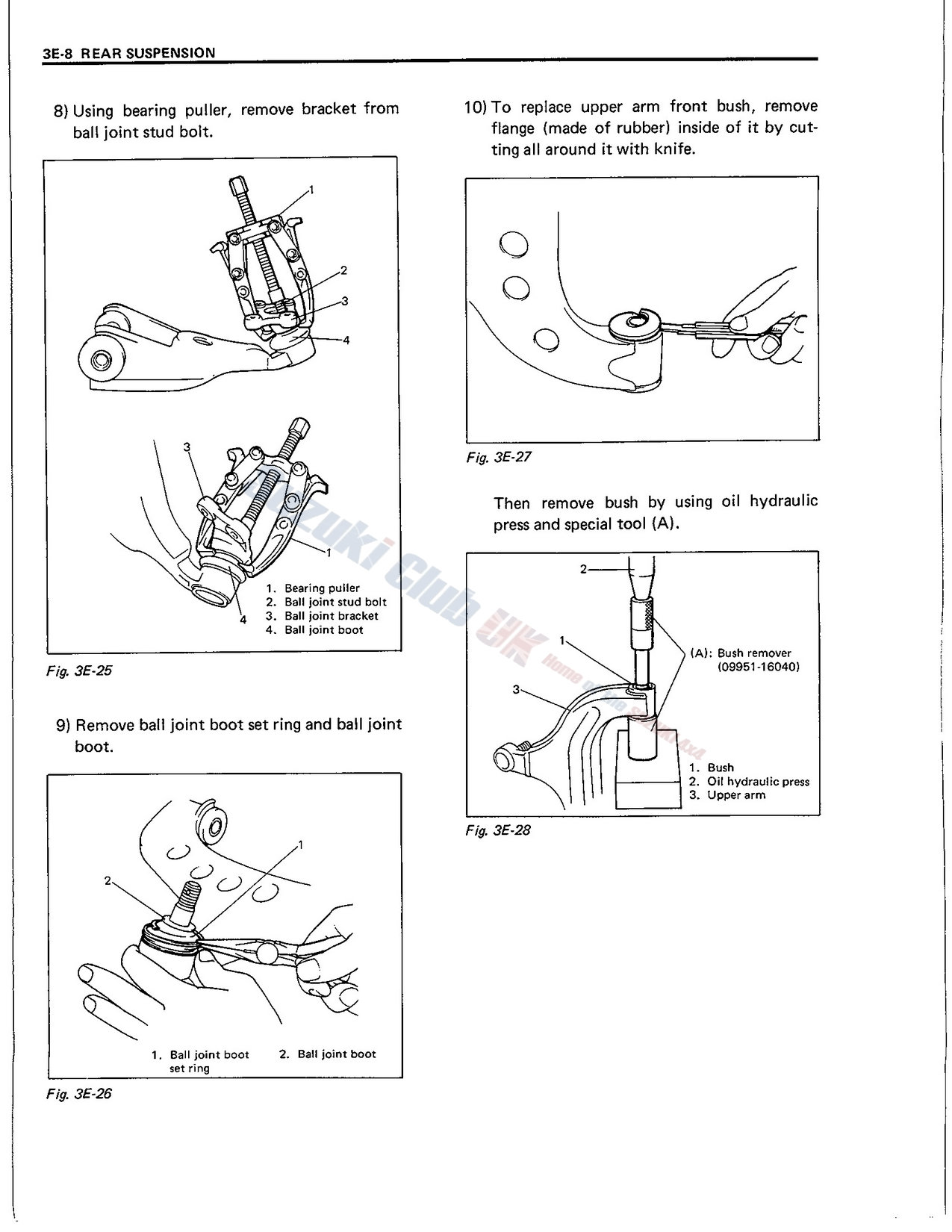

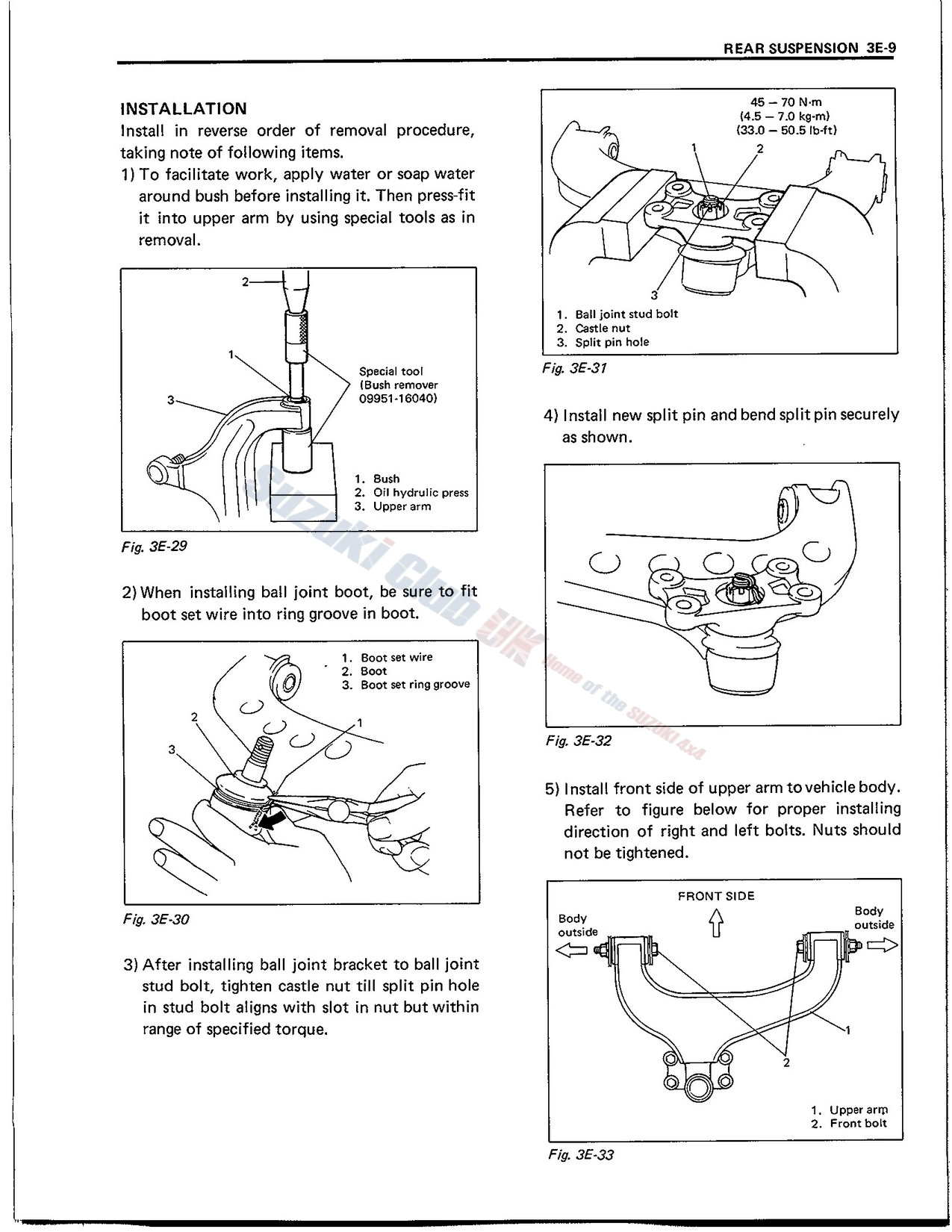

Section from the 1994 print workshop manual.
Attachments
vit bushes 8.jpg
vit bushes 8.jpg (258.86 KiB) Viewed 19360 times
vit bushes 7.jpg
vit bushes 7.jpg (319.53 KiB) Viewed 19360 times
vit bushes 6.jpg
vit bushes 6.jpg (251.13 KiB) Viewed 19360 times
vit bushes 5.jpg
vit bushes 5.jpg (287.44 KiB) Viewed 19360 times
vit bushes 4.jpg
vit bushes 4.jpg (293.43 KiB) Viewed 19360 times
vit bushes 3.jpg
vit bushes 3.jpg (290.34 KiB) Viewed 19360 times
vit bushes 2.jpg
vit bushes 2.jpg (348.87 KiB) Viewed 19360 times
vit bushes 1.jpg
vit bushes 1.jpg (276.38 KiB) Viewed 19360 times
