any body know these i'm ready to throw another box in ??
![:S :S](./images/smilies/Confused.gif)
oops its a vitara 1.6
and i took about a gallon out the gbox and 2 litre out the t box lol and none of it oil
![bawling :bawling:](./images/smilies/bawling.gif)
-
ScottieJ
- The Boss
![The Boss The Boss](./images/ranks/rank11.png)
- Posts: 11614
- Joined: Tue Apr 15, 2008 12:13 pm
- Location: Chippenham, wiltshire
Post
by ScottieJ » Wed Mar 13, 2013 9:30 pm
Sae 75w90 gl4 or equivalent yellow metal safe oil in the gearbox
1.5l I think
Sae 75w90 gl5 in the transfer box or equivelent hypoid gear oil.
1.7l I think
The weights don't really need to be those exact ones say 80w90 etc will be fine, the main thing is that you use GL4 or a yellow metal safe oil in the grarbox.
-
Darrell
- Suzuki, will you marry me?
![Suzuki, will you marry me? Suzuki, will you marry me?](./images/ranks/rank8.png)
- Posts: 2989
- Joined: Wed Feb 23, 2011 7:54 pm
- Location: south oxfordshire
-
Contact:
Post
by Darrell » Wed Mar 13, 2013 10:05 pm
-
Attachments
-

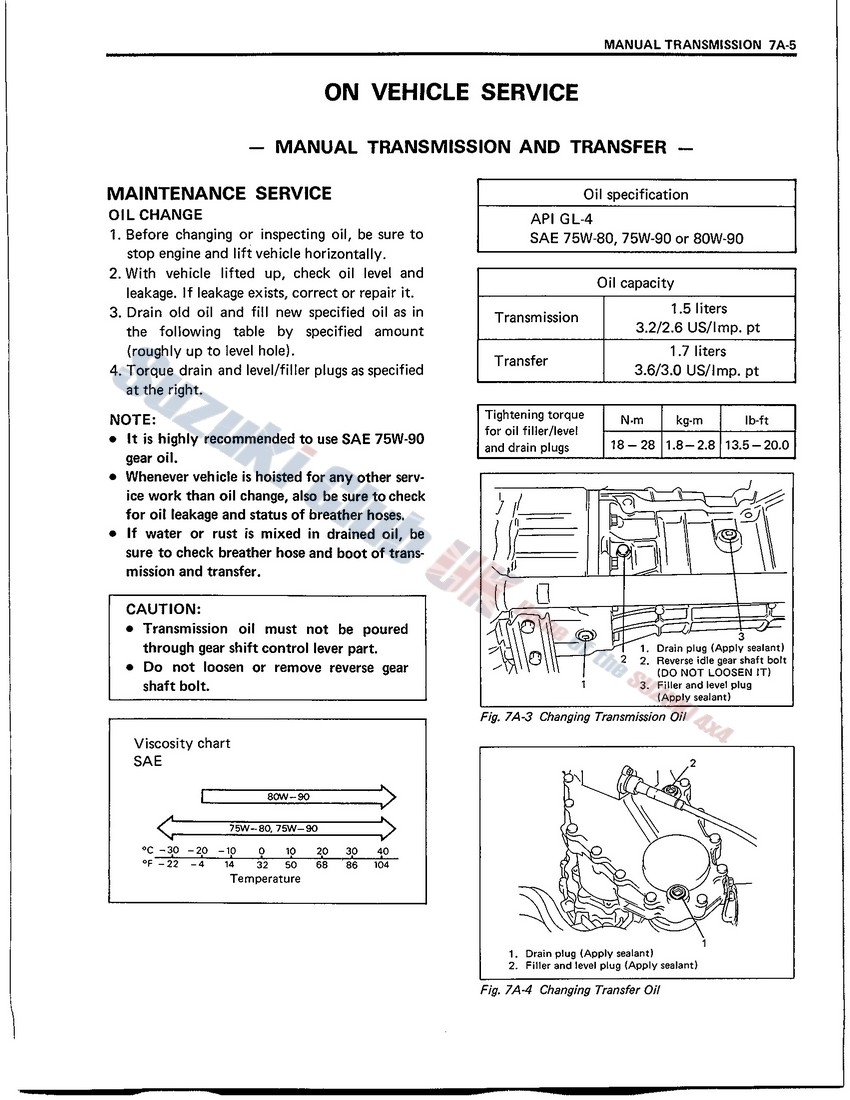

![vit transmission transfer oil.jpg](./download/file.php?id=7559&sid=ede144cb36cd0916dac5ba9244a84077)
- vit transmission transfer oil.jpg (218.13 KiB) Viewed 5045 times
2005-GV 1600se, "Hell" What do I know!
-
Anton
- I spend far too much time on here
![I spend far too much time on here I spend far too much time on here](./images/ranks/rank9.png)
- Posts: 3859
- Joined: Tue Jan 12, 2010 12:12 pm
- Location: London
Post
by Anton » Thu Mar 14, 2013 4:52 pm
I should probably change the oil on mine - although by now, I'm sure everything is being "lubricated" by a thick muddy mess...
I have no idea how many times the oil has been changed since 86. Probably zero...
-
ali
- Got muddy boots
![Got muddy boots Got muddy boots](./images/ranks/rank1.png)
- Posts: 36
- Joined: Sat Jan 21, 2012 4:05 pm
Post
by ali » Sat Mar 16, 2013 3:37 pm
cheers for that guys!
![double thumbs :doublethumbs:](./images/smilies/thumbup.gif)
