1991 Suzuki Samurai build

[ScottieJ]

Ah yes I forgot you ran that set up I just went back and looked at your pics. Would be the easiest option to keep a similar set up. Much easier than fitting them in with SPUA that's for sure.

[gp7186]

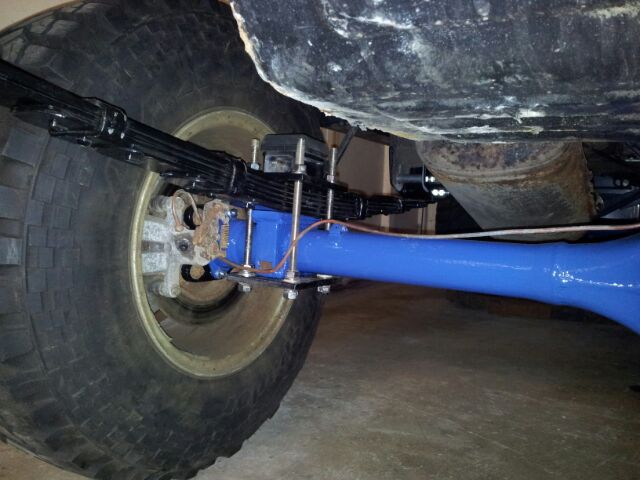

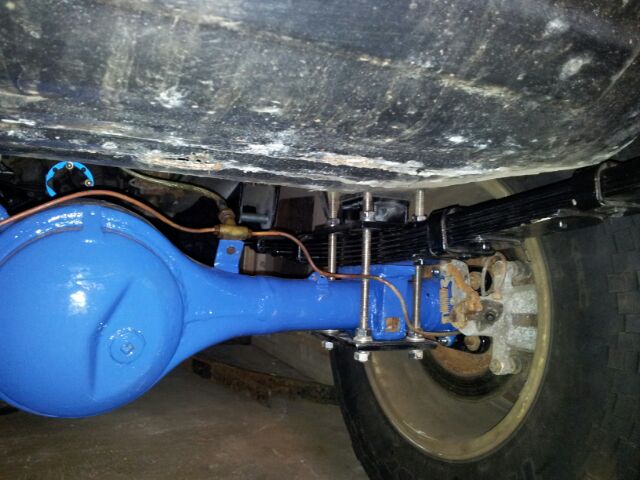

Rear is now almost done just got to mount shocks and cut down a few pins

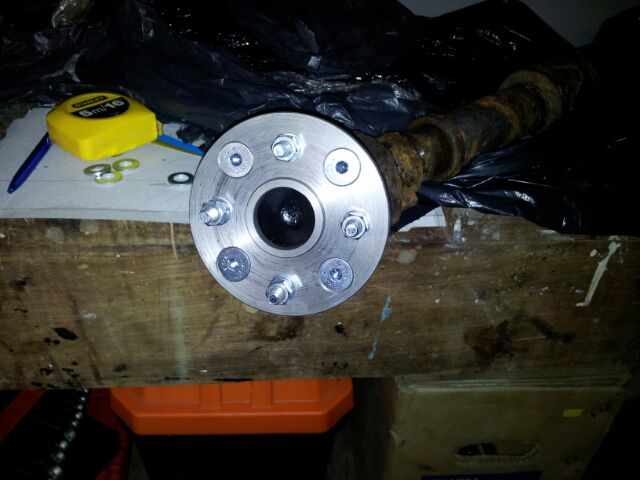

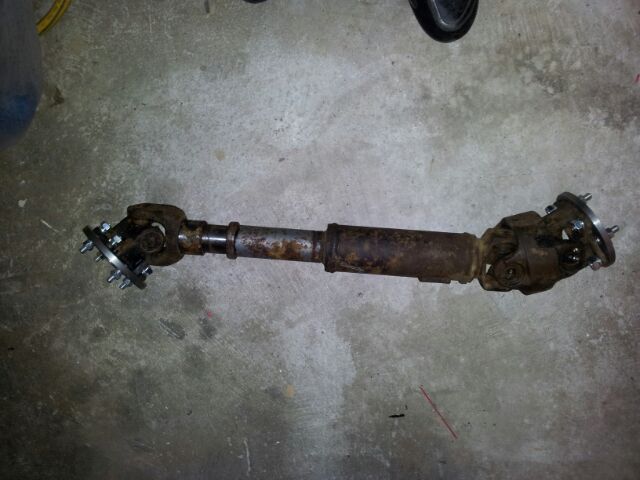

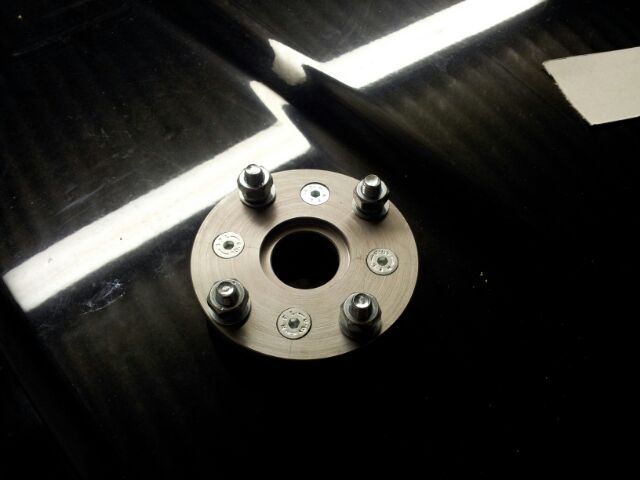

I then went to fit the rear prop but the uj's were a bit seized so I decided to modify and fit the toyota hilux prop I had in the garage. Firstly I made an adapter flange for end of the prop

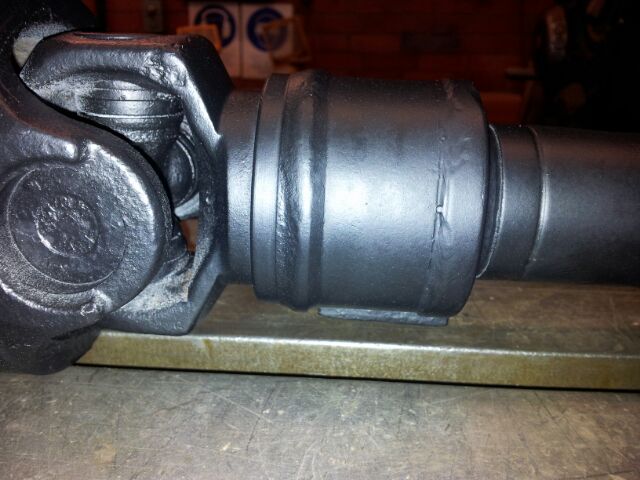

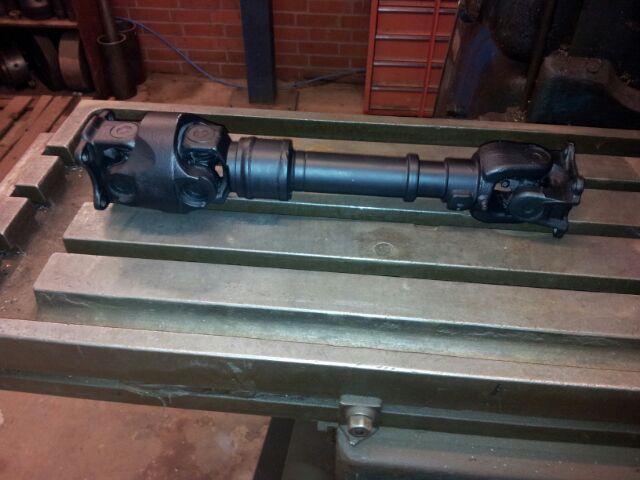

Then I machined the prop to remove 145mm from the total length. I then welded it up and painted it.



I tried to keep everything perfectly in line so I will fit it and see if its out of balance if it is il get it balanced up

[turbo-tom]

so I decided to modify and fit the toyota hilux prop I had in the garage. Firstly I made an adapter flange for end of the prop

So casual!

looking really smart though!

[gp7186]

Thanks tom

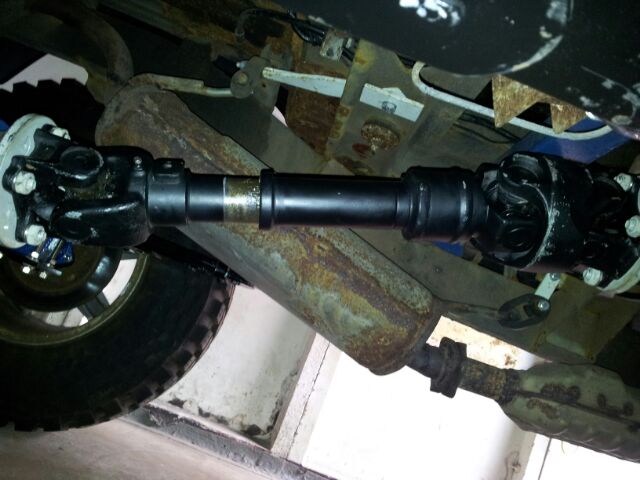

Fitted the hilux double carden prop this morning looks ok il just have to get it out for a run to see what it drives like


[kiwizook]

very nice work, my wagon up next?

[Jordi]

Top rate work as always boss!

Only a little jealous.

[gp7186]

Thanks for the comments

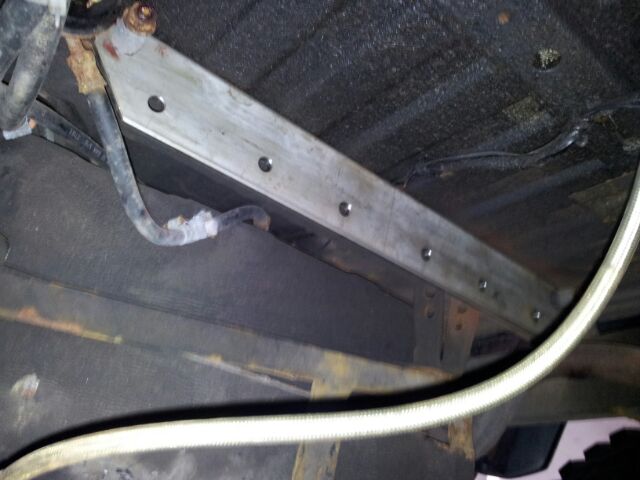

Now to sort the shocks. I am going to mount the astra shocks that were on before then replace them with some decent shocks with longer travel. Firstly made an adapter bar for the rear from 8mm stainless plate

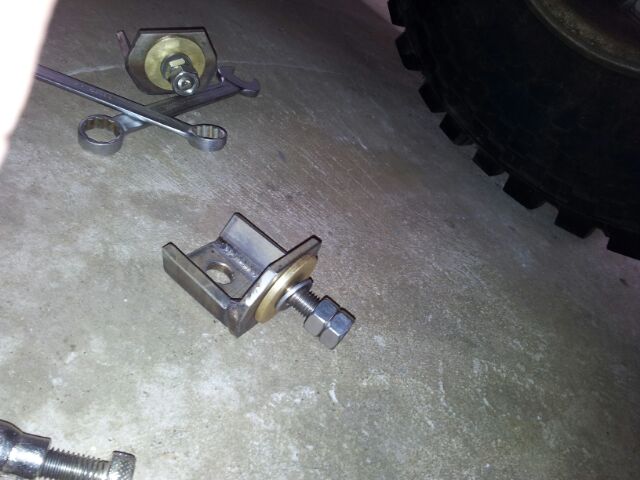

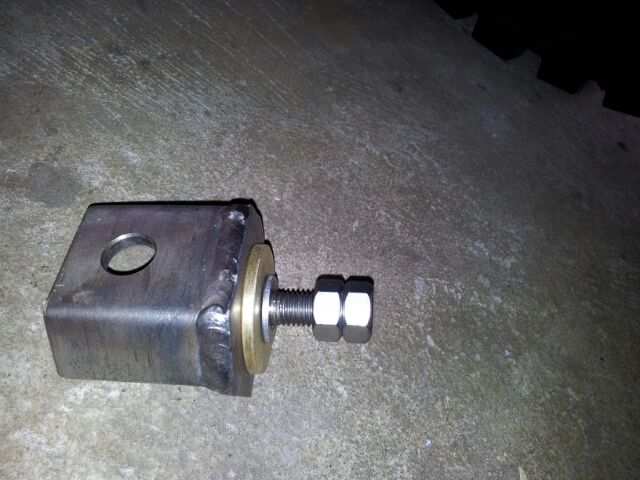

Then a pair of brackets to mount pin top shocks. I have made these to pivot using a brass thrust washer and again all made from stainless steel




[Jordi]

This sould have some pretty impressive articulation with the SPOA setup.

[turbo-tom]

Very nice so pressuming the shock bracket will swivell on the 8mm plate or am I missing something? Looks like it really has been thought through

[gp7186]

This sould have some pretty impressive articulation with the SPOA setup.

I can at least hope so they seem very flexible but I aint had it out the garage yet. Should have the bottom of the shocks mounted soon so il have to try it out of course.
