Re: 1991 Santana Samurai

Post by tomcat » Mon Oct 07, 2024 11:24 am

Interior panels in place. radio/CD/MP3 player yet to go in.

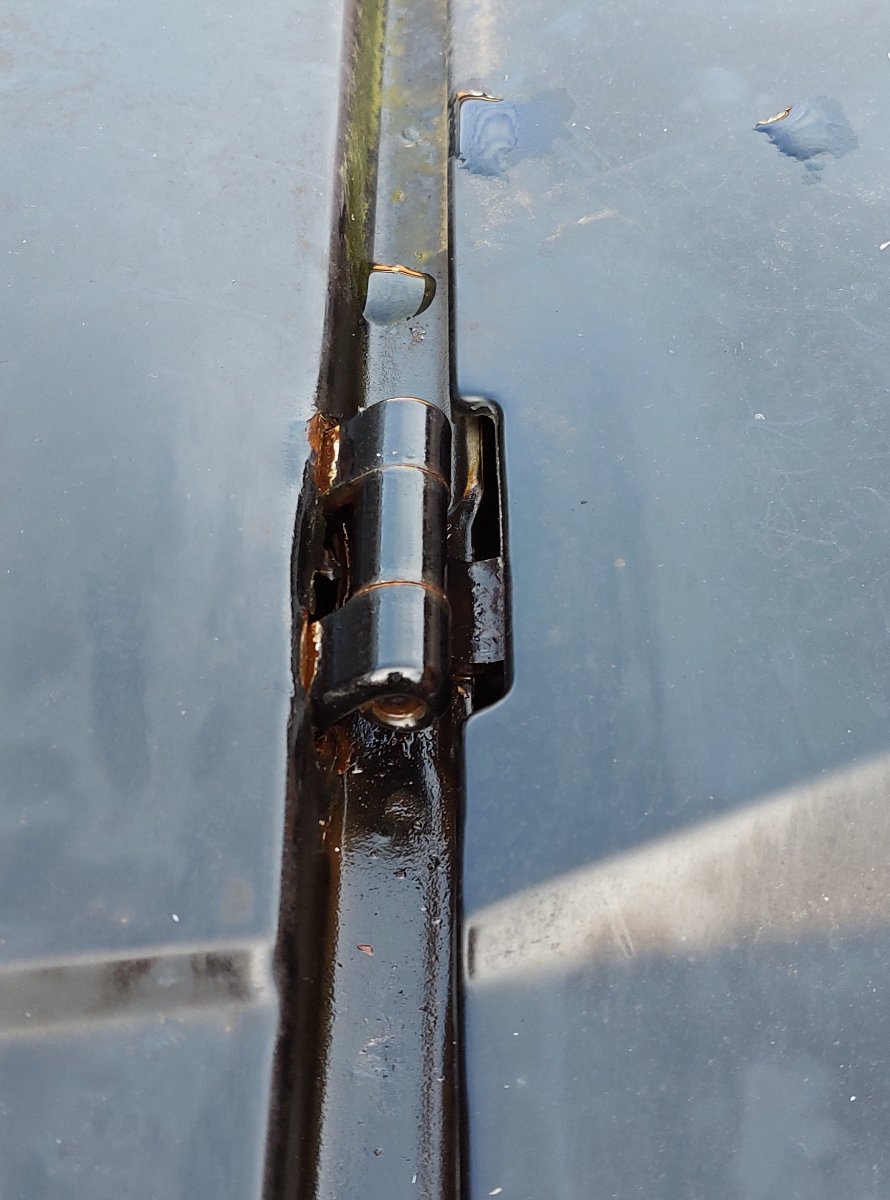

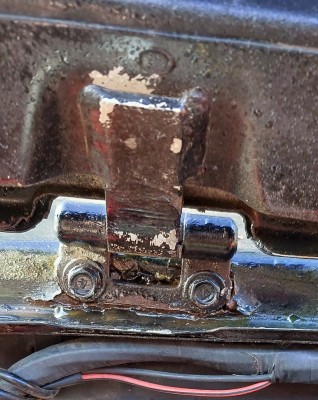

Sorting out bonnet hinges. All 4 No bolts loosen which is good news.

User avatar
tomcat
Engaged 4wd low
Engaged 4wd low
Posts: 216
Joined: Wed May 04, 2022 6:59 pm

Re: 1991 Santana Samurai

Post by tomcat » Tue Oct 08, 2024 5:21 am

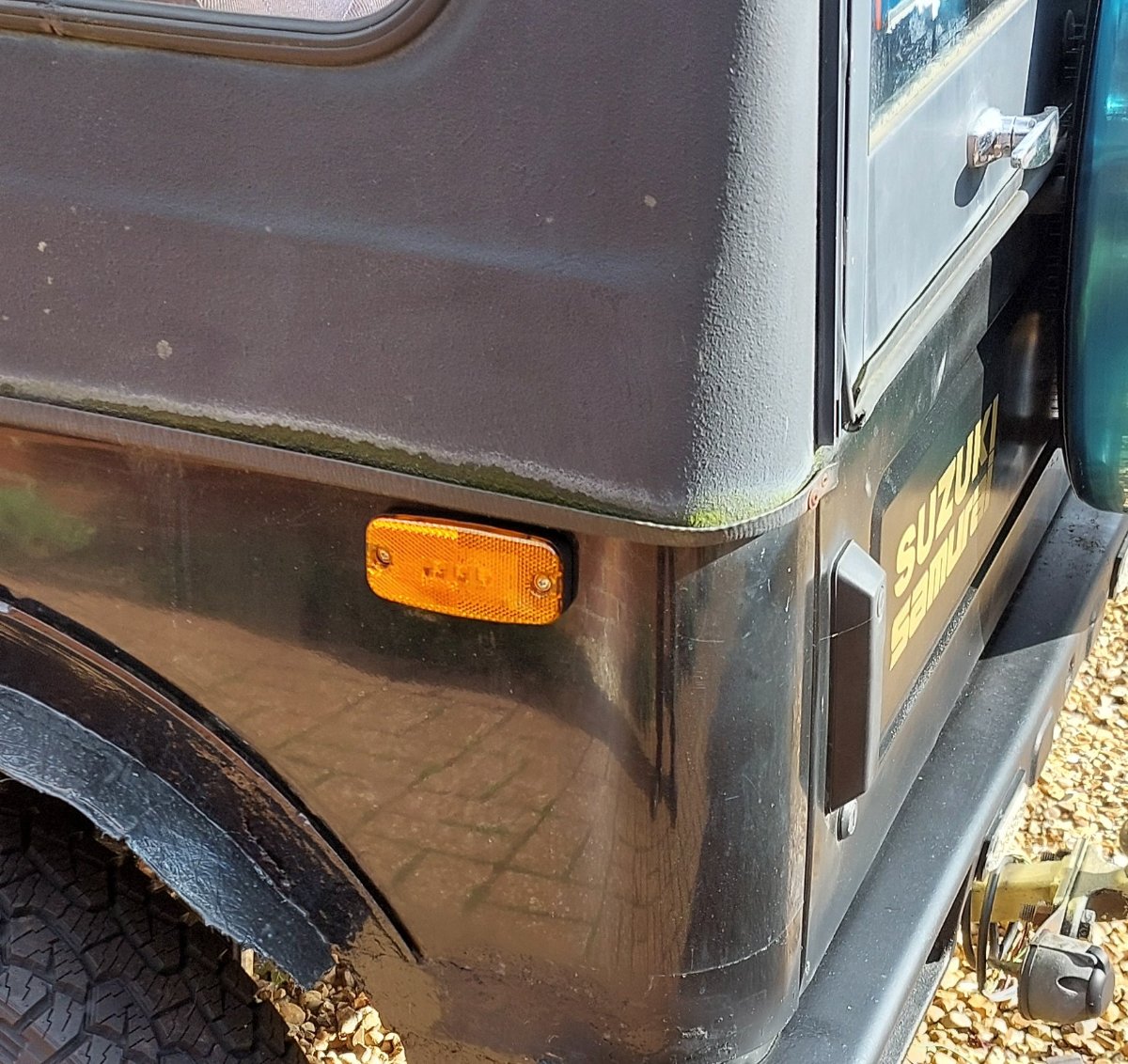

Adding some additional rear flasher lights.

User avatar
tomcat
Engaged 4wd low
Engaged 4wd low
Posts: 216
Joined: Wed May 04, 2022 6:59 pm

Re: 1991 Santana Samurai

Post by tomcat » Thu Oct 17, 2024 10:27 am

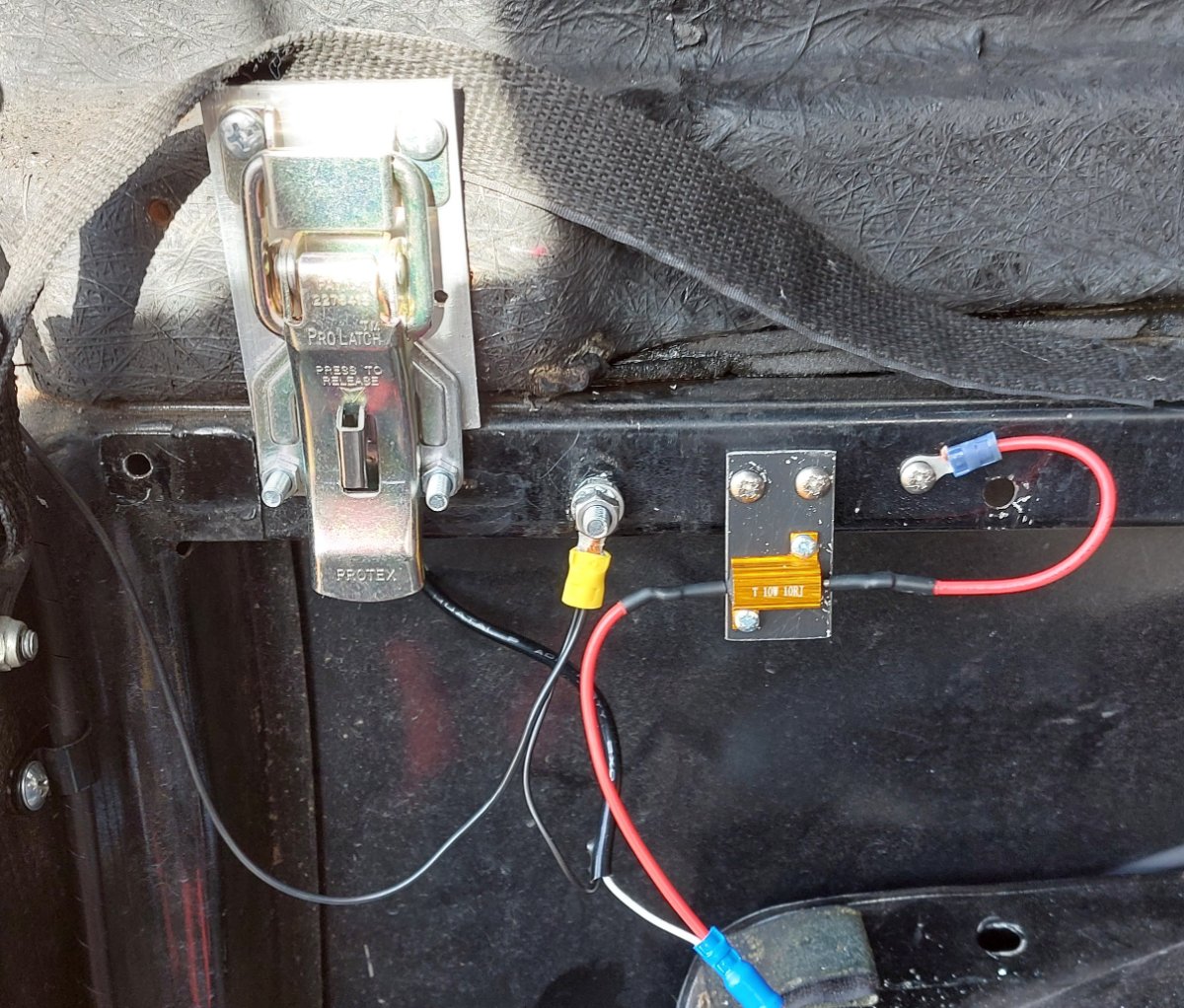

As rear flasher lights were LED's needed to add in a resistor.
Area still needs tidying up but in position.

User avatar
tomcat
Engaged 4wd low
Engaged 4wd low
Posts: 216
Joined: Wed May 04, 2022 6:59 pm

Re: 1991 Santana Samurai

Post by tomcat » Sat Oct 19, 2024 9:24 am

Window regulators fitted both sides. From India but fitted well with soome TLC.
New weatherstrips on order. [Item 83811-80100]
Hardtop interior fitting on passenger side fitted.
Rear Fog lights fitted.
Good what you can do when it is dry!!

User avatar
tomcat
Engaged 4wd low
Engaged 4wd low
Posts: 216
Joined: Wed May 04, 2022 6:59 pm

Re: 1991 Santana Samurai

Post by tomcat » Sat Oct 19, 2024 3:38 pm

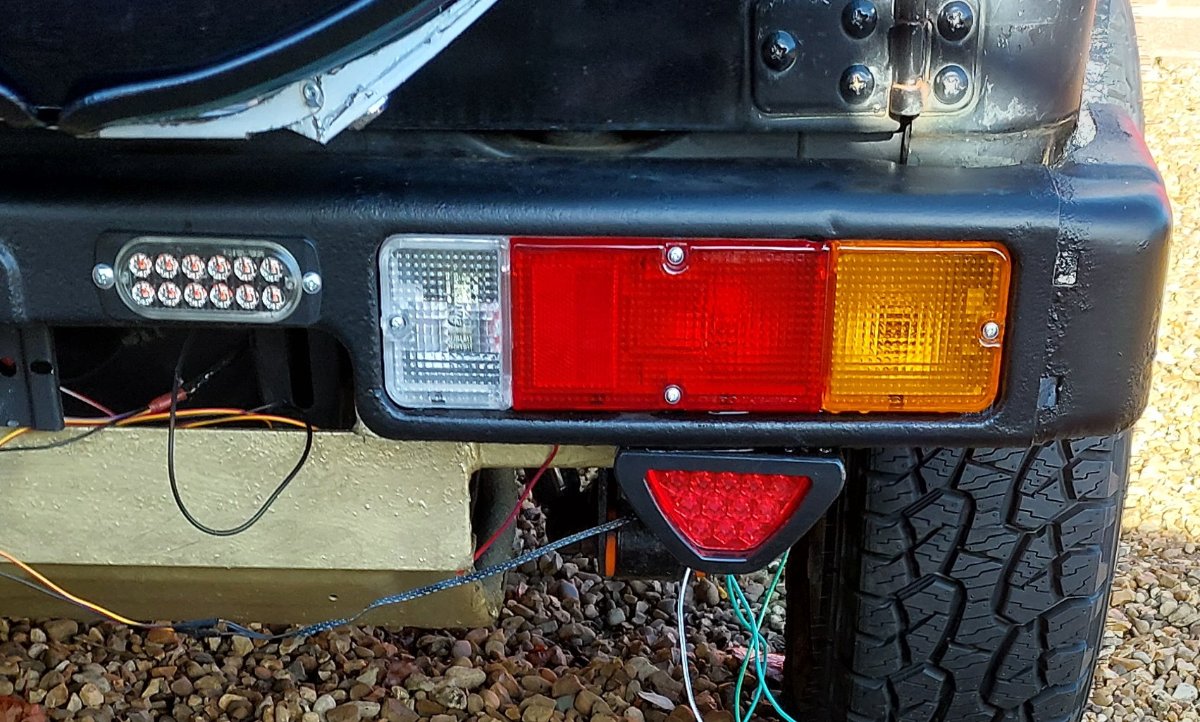

Rear Fog Light set-up.
Slight tweaking needed!!

User avatar
ScottieJ
The Boss
The Boss
Posts: 11621
Joined: Tue Apr 15, 2008 12:13 pm
Location: Chippenham, wiltshire

Re: 1991 Santana Samurai

Post by ScottieJ » Sun Oct 20, 2024 10:12 am

tomcat wrote:
Thu Oct 17, 2024 10:27 am
As rear flasher lights were LED's needed to add in a resistor.
Area still needs tidying up but in position.

Just swap to a led flasher relay. There are under £10 on eBay. Just need to order one that is the correct polarity.
Zuki Build

Steady as she goes!

User avatar
tomcat
Engaged 4wd low
Engaged 4wd low
Posts: 216
Joined: Wed May 04, 2022 6:59 pm

Re: 1991 Santana Samurai

Post by tomcat » Tue Oct 22, 2024 9:56 am

[/quote]

Just swap to a led flasher relay. There are under £10 on eBay. Just need to order one that is the correct polarity.
[/quote]

All bulbs are non LED except for the 2 new rear side lamps. So I felt I only needed to add resistors to cover them. Is this not correct?

Rankine
Can I have a tow
Can I have a tow
Posts: 275
Joined: Sun Nov 23, 2014 1:38 pm
Location: Stirling, Scotland

Re: 1991 Santana Samurai

Post by Rankine » Tue Oct 22, 2024 8:11 pm

When I only had led fronts I didn't bother with resistors. But when I went full led, I did as scottie suggested.
SJ413 LWB Santana 33s, 94",

User avatar
ScottieJ
The Boss
The Boss
Posts: 11621
Joined: Tue Apr 15, 2008 12:13 pm
Location: Chippenham, wiltshire

Re: 1991 Santana Samurai

Post by ScottieJ » Wed Oct 23, 2024 12:51 pm

tomcat wrote:
Tue Oct 22, 2024 9:56 am
Just swap to a led flasher relay. There are under £10 on eBay. Just need to order one that is the correct polarity.
[/quote]

All bulbs are non LED except for the 2 new rear side lamps. So I felt I only needed to add resistors to cover them. Is this not correct?
[/quote]

You don’t actually need the resistors if they are additional lights as you still have the resistance from the factory bulbs for the flasher relay to work correctly. They are only
needed if your are replacing any of the original indicators with leds.

However it’s just easier to swap to a led flasher relay anyway, these still work with normal bulbs, they just don’t need the resistance from the bulbs to set the flash speed.
