sj410 Suspension Diagram

Post by courior » Wed Oct 01, 2014 8:06 pm

Hi all,

Does anyone have an exploded diagram of front and rear suspension from a 410? or anything else thats the same? I want to count the bushes and things and see how it goes together before i have a go at replacing them all. Cheers

Courior
Maruti Gypsy MG410
Electric Fan upgrade
5 speed box
30" Insa Turbo Saharas
1.5" Shackle Lift
LWB Pickup Conversion
Lots of stickers and a Skull gearknob.
Daymaker led lights

User avatar
Darrell
Suzuki, will you marry me?
Suzuki, will you marry me?
Posts: 2989
Joined: Wed Feb 23, 2011 7:54 pm
Location: south oxfordshire
Contact:

Re: sj410 Suspension Diagram

Post by Darrell » Wed Oct 01, 2014 8:34 pm

Done this..
The bolts that go through the spring/sleeve can often rust together so bad that they need to be cut off.
Just consider if you can get new bolts easily before you start. They are just 12mm x 100mm long.
Your of course may well be rust free !!
Attachments

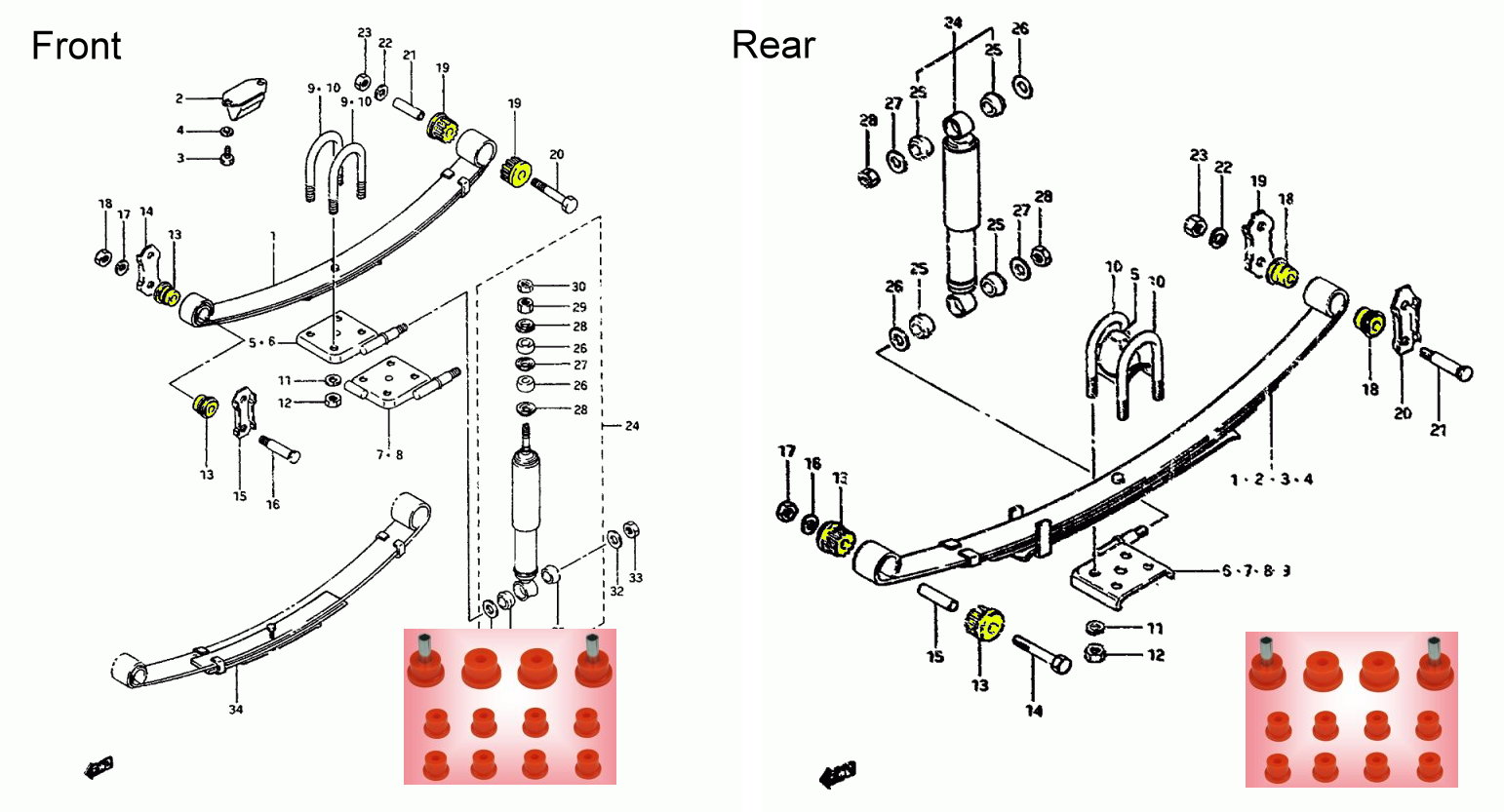

Sj suspension bushes.jpg
Sj suspension bushes.jpg (163.37 KiB) Viewed 6882 times
2005-GV 1600se, "Hell" What do I know!

courior
Can I have a tow
Can I have a tow
Posts: 357
Joined: Wed Jul 02, 2014 8:00 pm
Location: Malta

Re: sj410 Suspension Diagram

Post by courior » Wed Oct 01, 2014 8:39 pm

Its ok.. Found a spring replacement guide in the how-to section for the front... i guess the rear is the same.. so 16 small bushes and 8 large ones, and 12 bolts in total. Correct me if im wrong :)


Now i see the Diagram.. So i was right, thats good :) Cheers Darrell.

Going to make up some slightly longer shackles and get a kit to do this!

Cheers!

Courior
Maruti Gypsy MG410
Electric Fan upgrade
5 speed box
30" Insa Turbo Saharas
1.5" Shackle Lift
LWB Pickup Conversion
Lots of stickers and a Skull gearknob.
Daymaker led lights

User avatar
Darrell
Suzuki, will you marry me?
Suzuki, will you marry me?
Posts: 2989
Joined: Wed Feb 23, 2011 7:54 pm
Location: south oxfordshire
Contact:

Re: sj410 Suspension Diagram

Post by Darrell » Wed Oct 01, 2014 9:21 pm

The original shackles have special bolts so they pinch up tight but do not compress the bush. These are also pressed into the shackle plate.
When people make extended shackles I believe they just use bolts. I don't know if they weld the head to stop the bolt from turning in the shackle? and use nylock nuts as not to compress the bushes?
I recommend you only extend them a little if you go down this route.
Attachments
Standard shackle bolts.jpg
Standard shackle bolts.jpg (85.32 KiB) Viewed 6872 times
2005-GV 1600se, "Hell" What do I know!

User avatar
twiss
SCUK Computer Wizard
SCUK Computer Wizard
Posts: 6110
Joined: Mon Nov 08, 2010 2:28 pm
Location: Birkirkara, Malta
Contact:

Re: sj410 Suspension Diagram

Post by twiss » Wed Oct 01, 2014 11:00 pm

Yeah I recommended 100mm distance max to courior...
My bolt heads aren't welded in, but I have got nylock nuts. Never had a problem with them like that

I just do them up to the point just before they start to bend the shackles in
Bolt welded though the middle also helps
Twiss

'93 Suzuki Samurai Sport 1.6 16v SU. Virtual lift, spring under, 31s
'93 Maruti Gypsy MG410

"If brute force doesn't fix your problem, you aren't using enough of it."

courior
Can I have a tow
Can I have a tow
Posts: 357
Joined: Wed Jul 02, 2014 8:00 pm
Location: Malta

Re: sj410 Suspension Diagram

Post by courior » Thu Oct 02, 2014 12:35 pm

Yeah this was all twiss's idea lol. How thick does the steel plate need to be? Would going thicker than standard be of advantage?

Cheers
Maruti Gypsy MG410
Electric Fan upgrade
5 speed box
30" Insa Turbo Saharas
1.5" Shackle Lift
LWB Pickup Conversion
Lots of stickers and a Skull gearknob.
Daymaker led lights

User avatar
ScottieJ
The Boss
The Boss
Posts: 11607
Joined: Tue Apr 15, 2008 12:13 pm
Location: Chippenham, wiltshire

Re: sj410 Suspension Diagram

Post by ScottieJ » Thu Oct 02, 2014 12:56 pm

No need for a brace in the middle of the shackle, not having a brace allows the shackle to twist a bit and this helps with flex.
Zuki Build

Steady as she goes!

User avatar
twiss
SCUK Computer Wizard
SCUK Computer Wizard
Posts: 6110
Joined: Mon Nov 08, 2010 2:28 pm
Location: Birkirkara, Malta
Contact:

Re: sj410 Suspension Diagram

Post by twiss » Thu Oct 02, 2014 4:04 pm

Helps to stop you doing them up to tight at least ;)
And I find that mine flex even with the bar welded through the middle :S
