I thought the fuse had gone , so no indicators would work or the reverse lights as they share a fuse.
Hazards however have there own fuse. As these work it seems they are wired correctly.
Well a diagram anyway
Rear Light Problem
-
Darrell
- Suzuki, will you marry me?
- Posts: 2989
- Joined: Wed Feb 23, 2011 7:54 pm
- Location: south oxfordshire
- Contact:
Re: Rear Light Problem
I don't understand why only one side indicators works
I thought the fuse had gone , so no indicators would work or the reverse lights as they share a fuse.
Hazards however have there own fuse. As these work it seems they are wired correctly.

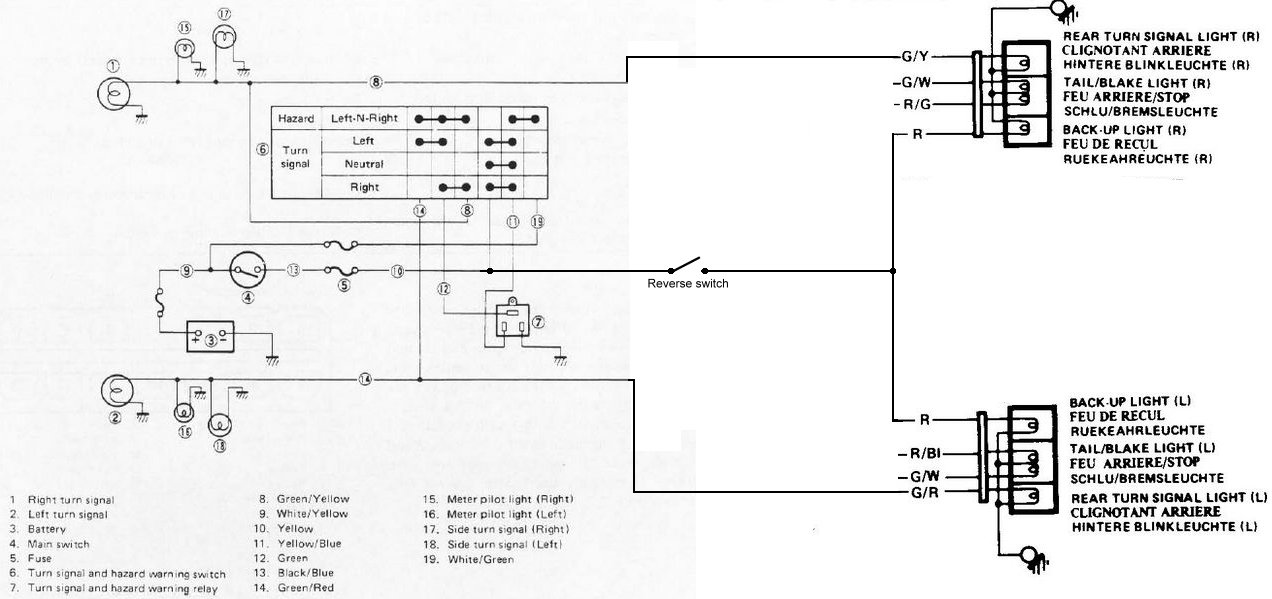

Well a diagram anyway
I thought the fuse had gone , so no indicators would work or the reverse lights as they share a fuse.
Hazards however have there own fuse. As these work it seems they are wired correctly.
Well a diagram anyway
- Attachments
-
- Untitled - 1.jpg (108.79 KiB) Viewed 2453 times
2005-GV 1600se, "Hell" What do I know!
-
Scouse Lee
- Got muddy boots
- Posts: 97
- Joined: Wed Sep 25, 2013 9:31 am
Re: Rear Light Problem
Indicator relay knackered hence indicators not working plus we traced the reverse lights wire back to a connector in the engine bay and it seems there should be a cable plugged into it then going to the connector on top of the gear box........can anyone point me in the right direction of what it is I need, (does it have a part name/number for instance), or any drawings I can find it on, better still does anyone have one for sale. cheers.
