Sj internal loom

Post by ianedwards » Sun Jun 23, 2013 7:42 pm

Hi, after some help,

Can any one remember or know how the internal loom is routed in a sj 413, or have a picture handy of the loom in place.

I can't remember for the life of me how it went.

Cheers

Ian
Cheers

Ian. :)

1987 Suzuki SJ413 KJA - Fixed + Modified in my own way
Top
User avatar
ianedwards
SCUK Addict
SCUK Addict
Posts: 878
Joined: Thu Sep 15, 2011 8:23 pm
Location: Brecon Powys

Re: Sj internal loom

Post by ianedwards » Thu Jun 27, 2013 2:05 pm

Ok, so after cleaning the 20 odd years worth of crap out the pipes in the dash I noticed cable clips all the way along the inside of the dash, are these for the loom?

Or does it just go on the cross member, or is it a bit of both ?

Any help would be great

Cheers

Ian
Cheers

Ian. :)

1987 Suzuki SJ413 KJA - Fixed + Modified in my own way
Top
User avatar
turbo-tom
I spend far too much time on here
I spend far too much time on here
Posts: 4478
Joined: Fri Jun 25, 2010 9:29 pm
Location: West Sussex

Re: Sj internal loom

Post by turbo-tom » Thu Jun 27, 2013 2:27 pm

Mines a bit of bot bud. ;)
Tom :)

Ford Fiesta ST :D
Top
User avatar
ScottieJ
The Boss
The Boss
Posts: 11623
Joined: Tue Apr 15, 2008 12:13 pm
Location: Chippenham, wiltshire

Re: Sj internal loom

Post by ScottieJ » Thu Jun 27, 2013 2:58 pm

Wherever it fits ;)
Zuki Build

Steady as she goes!
Top
User avatar
dan_2k_uk
I spend far too much time on here
I spend far too much time on here
Posts: 4924
Joined: Tue May 06, 2008 5:19 pm
Location: Swindon, Wiltshire

Re: Sj internal loom

Post by dan_2k_uk » Thu Jun 27, 2013 3:33 pm

Think most of mine is in the clips that run along the tubular bar the dash screws to.
Janspeed manifold, LWB Vit vented discs and calipers

Build thread -- Build photos -- HLA-Artwork
Coming soon: YJs, Trussed axles, Full float rear.
Top
User avatar
ianedwards
SCUK Addict
SCUK Addict
Posts: 878
Joined: Thu Sep 15, 2011 8:23 pm
Location: Brecon Powys

Re: Sj internal loom

Post by ianedwards » Thu Jun 27, 2013 3:43 pm

Hmmmm, will have to see then. Nearly ready for the dash to go in, bit more to clean first tho. Might run it rough, put the dash it in connect it up, and see which clips it will reach and if not cable ties lol

Ian
Cheers

Ian. :)

1987 Suzuki SJ413 KJA - Fixed + Modified in my own way
Top
User avatar
dan_2k_uk
I spend far too much time on here
I spend far too much time on here
Posts: 4924
Joined: Tue May 06, 2008 5:19 pm
Location: Swindon, Wiltshire

Re: Sj internal loom

Post by dan_2k_uk » Thu Jun 27, 2013 3:45 pm

Will probably vary between Spanish and Jap too as the fuseboxes are in different places.
Janspeed manifold, LWB Vit vented discs and calipers

Build thread -- Build photos -- HLA-Artwork
Coming soon: YJs, Trussed axles, Full float rear.
Top
User avatar
Jordi
Bow down before me
Bow down before me
Posts: 7535
Joined: Sun Nov 29, 2009 2:35 pm
Location: Darlington, Co. Durham

Re: Sj internal loom

Post by Jordi » Thu Jun 27, 2013 5:27 pm

Run them where ever is easiest and out of the way. If no clips are available cables ties and electrical tape
1988 Samurai - Truck Cab & Tray Back - 1.6 8v & HIF44 - Snorkel - Stack Exhaust - PAS, YJs & 33s - Trussed, Gusseted & Pumpkin Capped Axles - 4.3 R&Ps - 4.16 T/Box - Rear Air Locker - Full Float Back Axle & Discs - RCV Front Shafts - X-Eng Handbrake - Custom Fuel Tank
Top
User avatar
Darrell
Suzuki, will you marry me?
Suzuki, will you marry me?
Posts: 2988
Joined: Wed Feb 23, 2011 7:54 pm
Location: south oxfordshire
Contact:
Contact Darrell

Re: Sj internal loom

Post by Darrell » Thu Jun 27, 2013 6:47 pm

:tongue:
Attachments

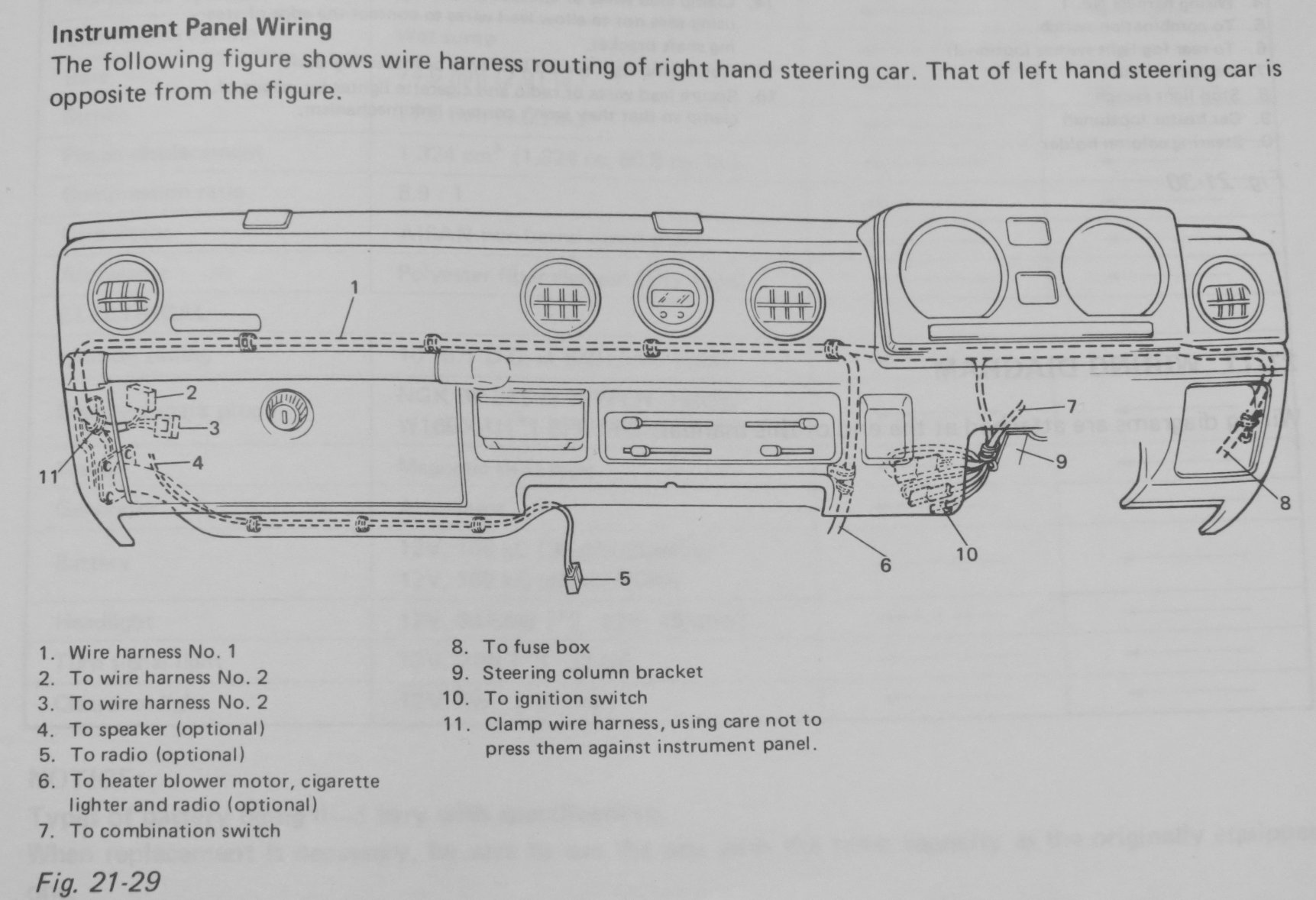

Dash wiring.JPG
Dash wiring.JPG (225.16 KiB) Viewed 4861 times
2005-GV 1600se, "Hell" What do I know!
Top
User avatar
ianedwards
SCUK Addict
SCUK Addict
Posts: 878
Joined: Thu Sep 15, 2011 8:23 pm
Location: Brecon Powys

Re: Sj internal loom

Post by ianedwards » Thu Jun 27, 2013 7:10 pm

Hi, cheers chaps, I just seen that in the bible, must have missed it the other day. Looking at the clips on the actual dash it must here been in them, the inside of the clips arnt dusty as every thing else inside the dash is covered dust. That carnt be a coincidence lol plus the clips are in line with that diagram, might be mystery solved. I'm going to do it on the weekend now so ill update when it's in.

Cheers for your help

Ian
