SJ410 lighting wiring

[buzzuki]

On a 1988 SJ410 is the side lights' wiring split side to side? I've got a funny going on with the side lights/indicators - I've lost power to a front side light and the rear light interacts with the indicator both on the same side..?

[Darrell]

It's normally bad earths that make the lights play silly wankers

[buzzuki]

It's normally bad earths that make the lights play silly wankers

Yes that's exactly what they're doing!

I will look at earths but I'm also mystified as to why there's no volts in one of the connectors on that side, hence wondering if they were separately fused.

[Darrell]

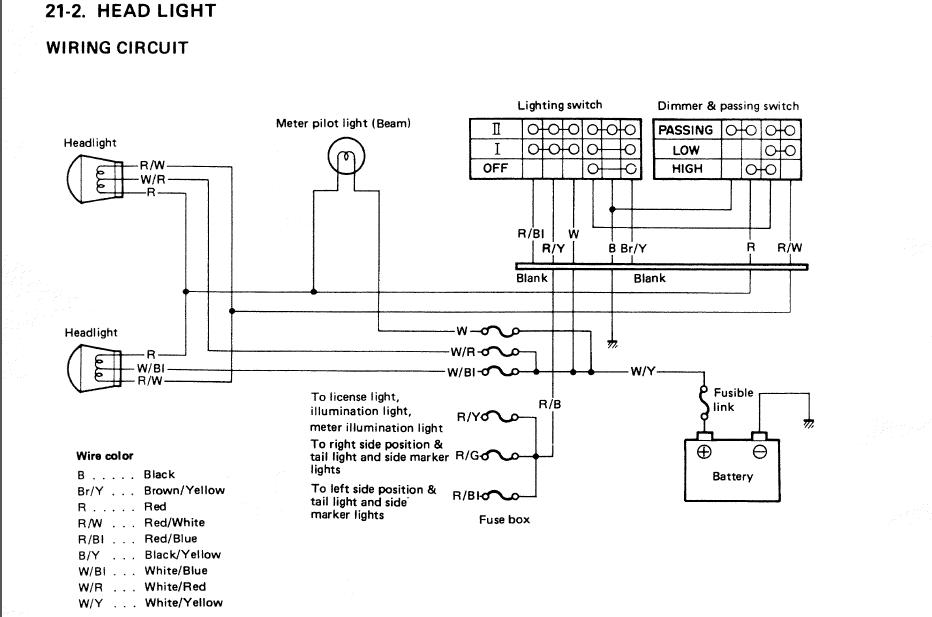

I believe a 88 410 lights are wired same as a 413. Yes fused either side, like so..

[buzzuki]

Aha yes I've been looking at a dead green and red wire so that makes sense, thanks for that.

[twiss]

fyi, I think the common name for the lights all flashing stupidly is "disco lights"

[buzzuki]

fyi, I think the common name for the lights all flashing stupidly is "disco lights"

Noted
