Sj410 starter wiring

Sj410red · Post by **Sj410red** » Sat Jan 18, 2014 8:42 pm

Hi all, I changed my starter today, old 1 had 2 spade connectors on solenoid new 1 has only 1? Any ideas what the other connector is for, it comes from the alternator wiring. Sj starts ok and runs tho.

Darrell · Post by **Darrell** » Sat Jan 18, 2014 10:05 pm

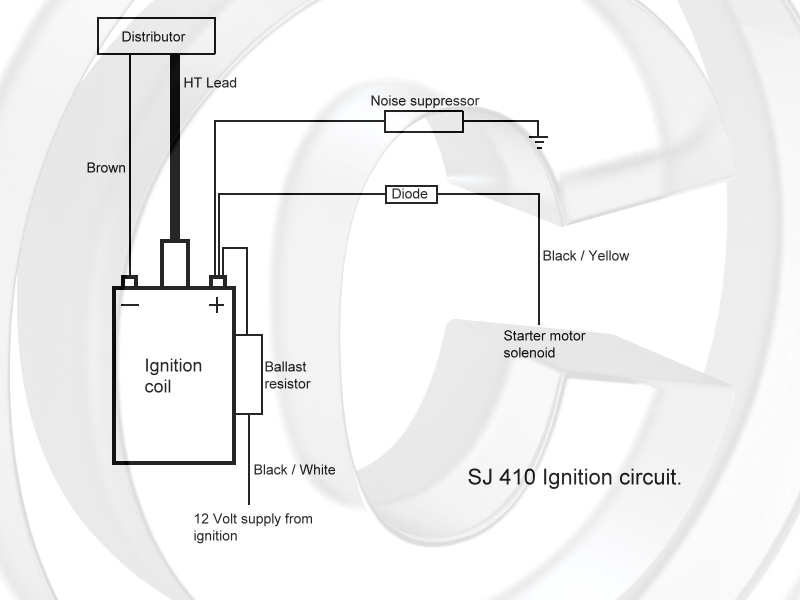

The 410 has the black/yellow from the ignition switch to the solenoid but also a connection from the solenoid direct to the coil positive. This supplies 12v to the coil when cranking over.
Hope this is what your referring too.

Darrell · Post by **Darrell** » Sat Jan 18, 2014 11:18 pm

Something like this ??

: 410 sol.jpg (5.87 KiB) Viewed 7040 times

Edited due to inaccuracy on wire colour.

Sj410red · Post by **Sj410red** » Sat Jan 18, 2014 11:26 pm

Yes that's what the old starter is like

Sj410red · Post by **Sj410red** » Sat Jan 18, 2014 11:32 pm

So can i just connect the cable to the battery terminal on the solenoid? As there's no other spade connector on the solenoid.

Darrell · Post by **Darrell** » Sat Jan 18, 2014 11:37 pm

Yes, but it needs to go on the large terminal on the solenoid (the one going into the side of the motor, only powered when cranking)

You could use a large ring terminal.
Could you not reuse the old starters connection or is that knackered.

Sj410red · Post by **Sj410red** » Sat Jan 18, 2014 11:41 pm

Looking at the pic you posted is it the bolted terminal or the left spade as I don't have the right spade, sorry I'm not all that clued up on these electrics

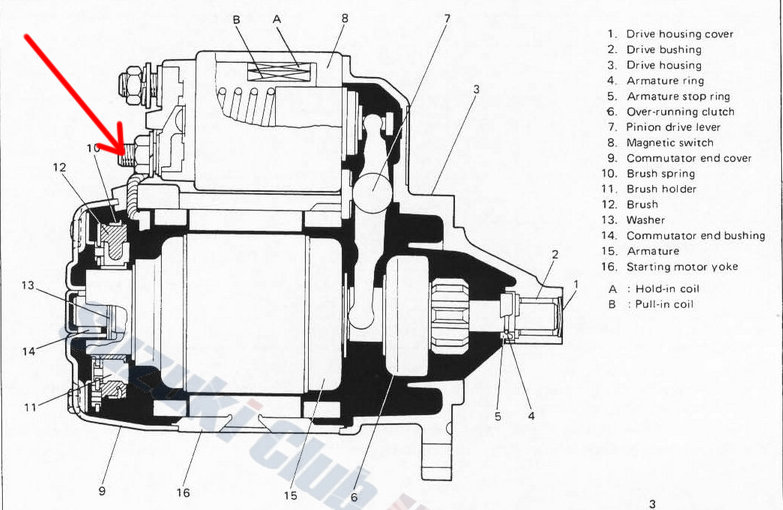

Darrell · Post by **Darrell** » Sat Jan 18, 2014 11:44 pm

You need to connect the wire going to the coil here.
Your old one had a spade terminal, but a ring terminal would do.

Sj410red · Post by **Sj410red** » Sat Jan 18, 2014 11:48 pm

Arh,I get you now, yes it's an exposed short cable which goes into motor, yes I will have a look at old starter to see if I can prise off the spade or see if I can buy a circular spade connector, thanks very much for your help, just one more question tho, it starts and runs as it is now so what does this connection do when I connect it?

Darrell · Post by **Darrell** » Sat Jan 18, 2014 11:53 pm

Basically just gives the coil a boost on starting to help get it going. (bigger spark I guess)
That's it really, as you found out it may well start fine without it.
