brake pedal height

Post by samurai gary » Sun Jan 05, 2014 7:02 pm

Hi, I want to check the height of my brake pedal, the manual says 130mm from floor to pedal
but does not say where abouts to measure from floor or to where on the pedal, does anyone have
a picture or diagram. thanks
Top
User avatar
Darrell
Suzuki, will you marry me?
Suzuki, will you marry me?
Posts: 2989
Joined: Wed Feb 23, 2011 7:54 pm
Location: south oxfordshire
Contact:
Contact Darrell

Re: brake pedal height

Post by Darrell » Sun Jan 05, 2014 10:08 pm

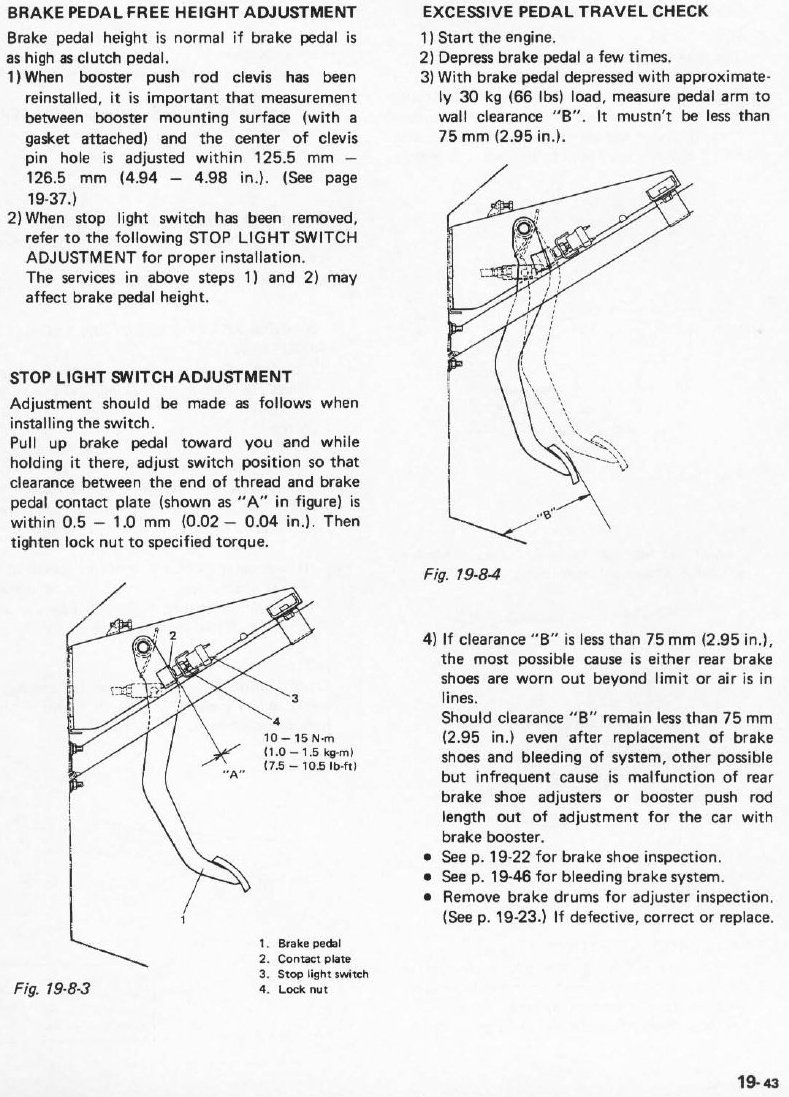

This is from the Suzuki 413 manual
Attachments
Brake pedal info.jpg
Brake pedal info.jpg (194.1 KiB) Viewed 3534 times
2005-GV 1600se, "Hell" What do I know!
Top
User avatar
samurai gary
Got muddy boots
Got muddy boots
Posts: 40
Joined: Sun Jan 15, 2012 3:19 pm

Re: brake pedal height

Post by samurai gary » Mon Jan 06, 2014 2:12 pm

thanks...
