Ignition trouble

[george123]

Hello iv had this sj for a hole now and the old owner had to try and got wire the car to get it going cuz it had the ignition barrel smashed an what he did was bridge the two wires in the plug with a hair pin and touch the black and yellow one to the hair pin is this correct? I'm stuck

[twiss]

Im not 100% on the colours...
but one is +12v, and the other three are for accessories, ignition, and starter.

I would start with the fattest wire and touch them together individually...

[george123]

Iv tried touching the fattest nothing happens iv touched the skinniest and it just turns over

[twiss]

OK, best way to find out which is 12v... get a bulb, connect it to a decent earth, and then connect in turn to each of the wires... when the bulb lights that is your main ignition wire

[george123]

Yeah I found the main 12 v to turn the dash on then I need to find the wire to power the coil but iv tried all this and nothing haha

[Darrell]

Are those wires supposed to be in the plastic connector ??

Don't look like the regular colours, is this a 410 or 413, I think it may be a spanish built model.

http://forum.suzukiclubuk.co.uk/vi ... it=spanish

[george123]

It's the 410 model can't figure how to start the bloody thing

[Darrell]

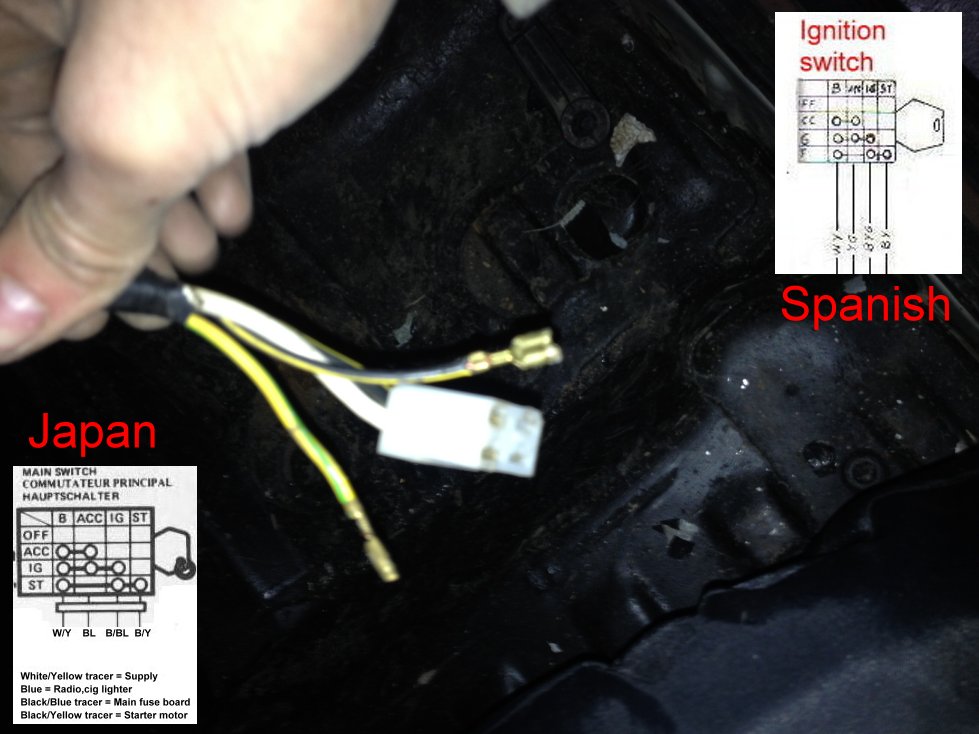

Done this..


So white/ with yellow tracer = supply from battery.
Yellow / with green tracer = acc = radio
BYG = supply to fuseboad and therefore igniton. No idea what colour it is as it's not on chart.
Black/ with yellow tracer = starter motor solenoid.


So connect white with yellow tracer to the BYG wire = ignition on
Then flash black/with yellow tracer onto above connection to start


PS could you let us know what colour exactly is that BYG

Cheers Darrell.

[george123]

Ahh okay what's byg? Sorry I'm new to sj haha

[george123]

Also how would I tell if my coil has shit it's self?
