fog wiring?

Henry · Post by **Henry** » Sun Jul 17, 2011 5:17 pm

Anyone have a diagram?

Darrell · Post by **Darrell** » Sun Jul 17, 2011 7:50 pm

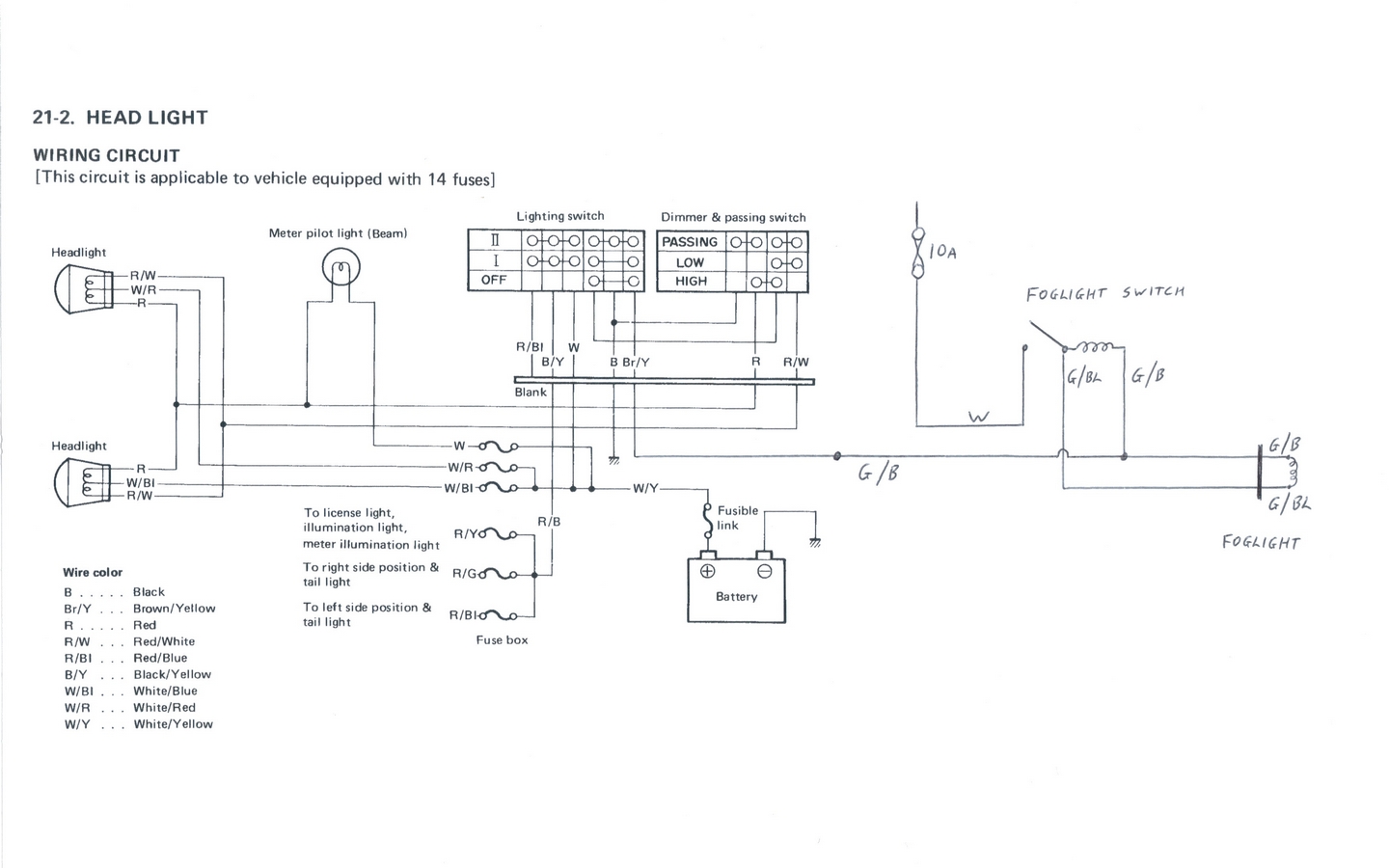

You called ..................

Henry · Post by **Henry** » Sun Jul 17, 2011 9:06 pm

Is that for the rear darrel? I could just do with knowing what colour the wire is

Darrell · Post by **Darrell** » Sun Jul 17, 2011 9:11 pm

Yes the rear.
One green with blue tracer. Switched live.
One green with black tracer. Switched earth.

Switched earth because the foglight will only work with the headlights on.

Henry · Post by **Henry** » Sun Jul 17, 2011 9:15 pm

so do they both go to live?

Henry

Henry · Post by **Henry** » Sun Jul 17, 2011 9:59 pm

just been for a look, i have 2x grey/green trace wires coming from 1 spade on the switch and one grey/green trace by the lights. So put that to my fog job done?

Darrell · Post by **Darrell** » Sun Jul 17, 2011 10:29 pm

I have no idea.

Why the hell didn't Suzuki just stick too the same colours, it would make life so much easier.
I believe you have a spanish one and my diagrams are for jap crap

Henry · Post by **Henry** » Sun Jul 17, 2011 10:41 pm

Yerp im on Spanish.

When i get my undicator stalk ill turn it on and pop the multi meter on it

Darrell · Post by **Darrell** » Sun Jul 17, 2011 10:45 pm

Henry wrote:just been for a look, i have 2x grey/green trace wires coming from 1 spade on the switch and one grey/green trace by the lights. So put that to my fog job done?

Probably not that easy, That may well be the switched live for the foglight.
The earth wire for the fog light comes from the headlight switch but also goes to the foglight switch to make the warning light come on.
If you earthed it direct it will work any time the fog light switch is operated and I would assume this is not correct for the MOT.

Darrell · Post by **Darrell** » Sun Jul 17, 2011 10:57 pm

As you said get the meter on that wire and see if it's switched live or not, but there should be another free wire at the foglight if your lucky.
