F10a engine, inlet port measurements

Post by twiss » Tue Nov 15, 2016 8:38 pm

Does anyone have an F10 engine with the inlet off that could measure the ports?

Looking for inlet port inside diameter, and the distance between the inlet port centers (including if they are all the same or not)

Port center distance in any of these would be awesome (72.5mm, 75mm, 78mm, 80mm, 85mm)

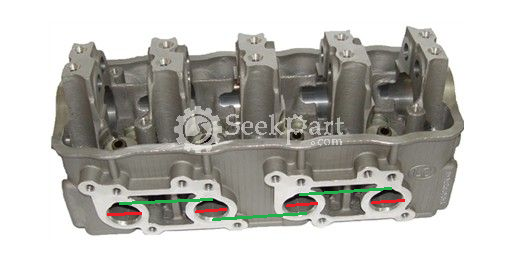

Don't think this is the right head but you get the idea
