Re: Suzuki sj 410 from Cornwall PROJECT Never Ending Project

Post by dazerede » Wed Sep 11, 2013 9:01 pm

Yep ok I will just bolt them on how they are
I.just can't wait.to fit them but I ain't got much.time on the evenings as I need it to get to work and college
Suzuki Sj 410 Jap Built
Recaro Seats Fitted
Landini Blue Colour
Full rollcage and winch bumper
1.6 8v vitara lump with su carb
4” calmini lift kit :)
235/75/15 insa turbo special tracks
99.9% Rust Free
BUILT NOT BOUGHT

User avatar
dazerede
Suzuki, will you marry me?
Suzuki, will you marry me?
Posts: 2141
Joined: Fri Sep 30, 2011 10:23 pm
Location: cornwall callington

Re: Suzuki sj 410 from Cornwall PROJECT Never Ending Project

Post by dazerede » Sat Sep 14, 2013 8:01 pm

:argh: wheel bearing is gone in the rear axle :argh:

But I have fitted the new springs and tadah they are 1.5-2 iinches higher than.my old ones
Attachments
Suzuki Sj 410 Jap Built
Recaro Seats Fitted
Landini Blue Colour
Full rollcage and winch bumper
1.6 8v vitara lump with su carb
4” calmini lift kit :)
235/75/15 insa turbo special tracks
99.9% Rust Free
BUILT NOT BOUGHT

User avatar
suzukisteve
Suzuki Guru
Suzuki Guru
Posts: 1344
Joined: Sat Feb 04, 2012 10:07 am
Location: Christchurch, Dorset

Re: Suzuki sj 410 from Cornwall PROJECT Never Ending Project

Post by suzukisteve » Sat Sep 14, 2013 8:33 pm

lookin good dude, where did you get em from?

rear bearings are easy to get hold of and not to bad to fir either :thumbup:
pickle power!

User avatar
dazerede
Suzuki, will you marry me?
Suzuki, will you marry me?
Posts: 2141
Joined: Fri Sep 30, 2011 10:23 pm
Location: cornwall callington

Re: Suzuki sj 410 from Cornwall PROJECT Never Ending Project

Post by dazerede » Sat Sep 14, 2013 8:37 pm

Are all 410 bearings the same as I have a Spanish 410 rear axle on my zook

Got them of eBay http://www.ebay.co.uk/itm/SUZUKI-SJ410- ... 0850654254

The hardest bit is getting the shaft out I had a spare axle so I thought I would take that one out and that one was easy but the shaft in my zook is stuck in.there
Suzuki Sj 410 Jap Built
Recaro Seats Fitted
Landini Blue Colour
Full rollcage and winch bumper
1.6 8v vitara lump with su carb
4” calmini lift kit :)
235/75/15 insa turbo special tracks
99.9% Rust Free
BUILT NOT BOUGHT

User avatar
suzukisteve
Suzuki Guru
Suzuki Guru
Posts: 1344
Joined: Sat Feb 04, 2012 10:07 am
Location: Christchurch, Dorset

Re: Suzuki sj 410 from Cornwall PROJECT Never Ending Project

Post by suzukisteve » Sat Sep 14, 2013 8:57 pm

can you use a slide hammer of the like on it? might give it enuf force to get it to move mate.

you gonna do a ruf then?
pickle power!

User avatar
dazerede
Suzuki, will you marry me?
Suzuki, will you marry me?
Posts: 2141
Joined: Fri Sep 30, 2011 10:23 pm
Location: cornwall callington

Re: Suzuki sj 410 from Cornwall PROJECT Never Ending Project

Post by dazerede » Sat Sep 14, 2013 9:09 pm

I plan to do ruf in a coupe of mounts but funds is getting a bitblow so can't for a while

I bolted a pice of angle metal on too 2 the Drum nuts and I put a car sissor jack in bertween the spring.and the angle metal and all it is doing is bending the meatal I gave up for the day about 2 hours ago but I.will have a better go tmoz

What do I need to get to do the rear wheel bearing

Wheel bearing
Spacer
Oil seal
Suzuki Sj 410 Jap Built
Recaro Seats Fitted
Landini Blue Colour
Full rollcage and winch bumper
1.6 8v vitara lump with su carb
4” calmini lift kit :)
235/75/15 insa turbo special tracks
99.9% Rust Free
BUILT NOT BOUGHT

User avatar
suzukisteve
Suzuki Guru
Suzuki Guru
Posts: 1344
Joined: Sat Feb 04, 2012 10:07 am
Location: Christchurch, Dorset

Re: Suzuki sj 410 from Cornwall PROJECT Never Ending Project

Post by suzukisteve » Sat Sep 14, 2013 9:34 pm

if you buy a bearing kit it should have everything you need in it. gimme a sec and ill find a part number
pickle power!

User avatar
suzukisteve
Suzuki Guru
Suzuki Guru
Posts: 1344
Joined: Sat Feb 04, 2012 10:07 am
Location: Christchurch, Dorset

Re: Suzuki sj 410 from Cornwall PROJECT Never Ending Project

Post by suzukisteve » Sat Sep 14, 2013 9:37 pm

here we go: adk88204 or brt973

should be able to get either from most factors
pickle power!

User avatar
Darrell
Suzuki, will you marry me?
Suzuki, will you marry me?
Posts: 2989
Joined: Wed Feb 23, 2011 7:54 pm
Location: south oxfordshire
Contact:

Re: Suzuki sj 410 from Cornwall PROJECT Never Ending Project

Post by Darrell » Sat Sep 14, 2013 10:27 pm

dazerede wrote:I plan to do ruf in a couple of mounts but funds is getting a bit low so can't for a while

I bolted a piece of angle metal on too 2 the Drum nuts and I put a car scissor jack in between the spring.and the angle metal and all it is doing is bending the meatal I gave up for the day about 2 hours ago but I.will have a better go tmoz

What do I need to get to do the rear wheel bearing

Wheel bearing
Spacer
Oil seal
A new retaining collar, often part of a kit!
Maybe a brake pipe spanner, unless your backplate has the section that comes out.
A ordinary spanner may do, but once the nut is rounded off its a pain.
A angle grinder.
Access to to press.
Attachments

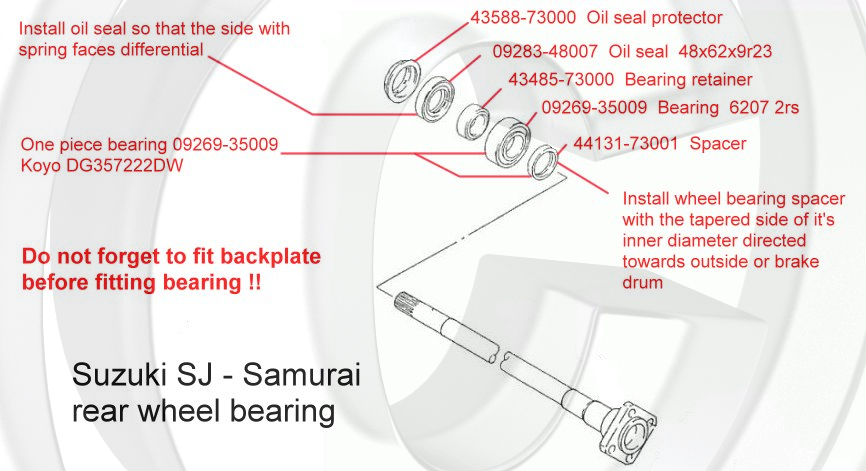

Rear wheel bearing diagram.jpg
Rear wheel bearing diagram.jpg (365.94 KiB) Viewed 5739 times
2005-GV 1600se, "Hell" What do I know!

User avatar
dazerede
Suzuki, will you marry me?
Suzuki, will you marry me?
Posts: 2141
Joined: Fri Sep 30, 2011 10:23 pm
Location: cornwall callington

Re: Suzuki sj 410 from Cornwall PROJECT Never Ending Project

Post by dazerede » Sun Sep 15, 2013 10:59 am

Right I give up

I have tried it this way and no luck my other shaft came out piece of piss a while back using it this way I just don't understand Chears Darrel I might aswell buy 2 kits just incase my other bearing goes in my rear axle
