engine cuts out

Engine not running right? see if we can help you!
User avatar
ScottieJ
The Boss
The Boss
Posts: 11620
Joined: Tue Apr 15, 2008 12:13 pm
Location: Chippenham, wiltshire

Re: engine cuts out

Post by ScottieJ » Mon Dec 12, 2011 4:57 pm

No because then it would be supplying the coil with a constant 12V rather than just when the starter is cranking. It would prematurely kill the coil as the coil is meant to only use the reduced 9V constantly.

The reason for that wire is to give the coil 12V during start up, the theory is that with the full 12V it will have a 'Hotter' spark to aid starting.
Zuki Build

Steady as she goes!

User avatar
twiss
SCUK Computer Wizard
SCUK Computer Wizard
Posts: 6110
Joined: Mon Nov 08, 2010 2:28 pm
Location: Birkirkara, Malta
Contact:

Re: engine cuts out

Post by twiss » Mon Dec 12, 2011 5:05 pm

Ahhhh gotcha... stupid coils...

So in answer to this question:
mk1joe wrote:hi, ive wired up the new coil with the black/green wire but at the starter motor end it is disconected and im not realy sure where it goes. could anyone tell me where abouts to connect it or maby even a picture?
cheers
joe
The black/green wire should also be going to the starter motor, and connect to the same terminal as the thin wire
(thick wire is 12v main start power, thin wire just activates it)
Twiss

'93 Suzuki Samurai Sport 1.6 16v SU. Virtual lift, spring under, 31s
'93 Maruti Gypsy MG410

"If brute force doesn't fix your problem, you aren't using enough of it."

User avatar
Darrell
Suzuki, will you marry me?
Suzuki, will you marry me?
Posts: 2989
Joined: Wed Feb 23, 2011 7:54 pm
Location: south oxfordshire
Contact:

Re: engine cuts out

Post by Darrell » Mon Dec 12, 2011 7:11 pm

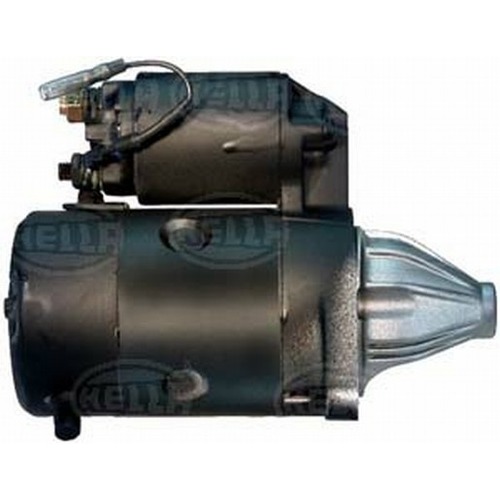

If the black/green wire was connected to the same terminal as the black/yellow (thin wire) the starter motor would run continual. The black/yellow wire has a diode inline to stop this. I really don't see why the black/green is there at all. I also found this pic when I seached for a 410 starter, it shows where I assume the black/green wires goes. But both wires seem to be doing the same job. Bloody suzuki no wonder I've lost most me hair :bawling:
Attachments
2005-GV 1600se, "Hell" What do I know!

User avatar
mk1joe
Winching along now
Winching along now
Posts: 707
Joined: Tue Mar 16, 2010 8:34 pm
Location: gosport

Re: engine cuts out

Post by mk1joe » Mon Dec 12, 2011 7:23 pm

ok, it makes sense that it gives the coil an extra boost upon starting but this wouldnt effect my slow starter motor problem then. thanks anyway
