Wiring diagrams
Re: Wiring diagrams
hi i've got a 1988 suzuki sj410 santana my hazards lights work but not the indicator arm its self any ideas what it could be?
- Darrell
- Suzuki, will you marry me?
- Posts: 2989
- Joined: Wed Feb 23, 2011 7:54 pm
- Location: south oxfordshire
- Contact:
Re: Wiring diagrams
Hi Tommo
They have separate fuses for hazards / indicators so check that first.
They have separate fuses for hazards / indicators so check that first.
2005-GV 1600se, "Hell" What do I know!
Re: Wiring diagrams
hi guys im abit stuck my fuel gauge does not work but the is to cables a yellow and red and a violet and yellow one which cable does what? can someone help me
- Darrell
- Suzuki, will you marry me?
- Posts: 2989
- Joined: Wed Feb 23, 2011 7:54 pm
- Location: south oxfordshire
- Contact:
Re: Wiring diagrams

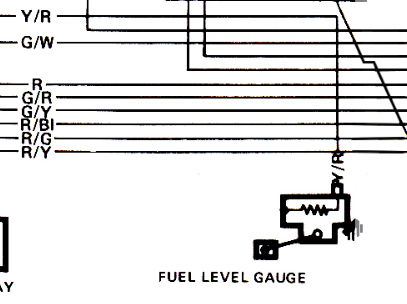

Yellow with red tracer goes to the fuel sender unit.
Not aware of any violet wires on an SJ
Not aware of any violet wires on an SJ
- Attachments
-
- kj.png (62.58 KiB) Viewed 35059 times
2005-GV 1600se, "Hell" What do I know!
Re: Wiring diagrams
so it the Y/R the only cable that should be connected?
- ektoz
- Engaged 4wd low
- Posts: 153
- Joined: Fri Apr 19, 2013 10:59 am
- Location: Paphos, Cyprus
- Contact:
Re: Wiring diagrams
Thanks very much scottie !!
-
- Got muddy boots
- Posts: 8
- Joined: Sat Oct 17, 2015 10:00 pm
Re: Wiring diagrams
Anyone know how to change the fuse board out of a Suzuki sj Spanish model, to a fuse box out of a jap model, as I have snapped my fuse board an can't seem to find one anywhere
Cheers
Cheers
Re: Wiring diagrams
Just added the Spanish Santana Samurai wiring diagram to the first post.
Re: Wiring diagrams
Would anyone have a pinnouts diagram for these clocks?
- Attachments
-
- received_10154006088391849.jpeg (232.48 KiB) Viewed 33495 times
- Darrell
- Suzuki, will you marry me?
- Posts: 2989
- Joined: Wed Feb 23, 2011 7:54 pm
- Location: south oxfordshire
- Contact:
Re: Wiring diagrams

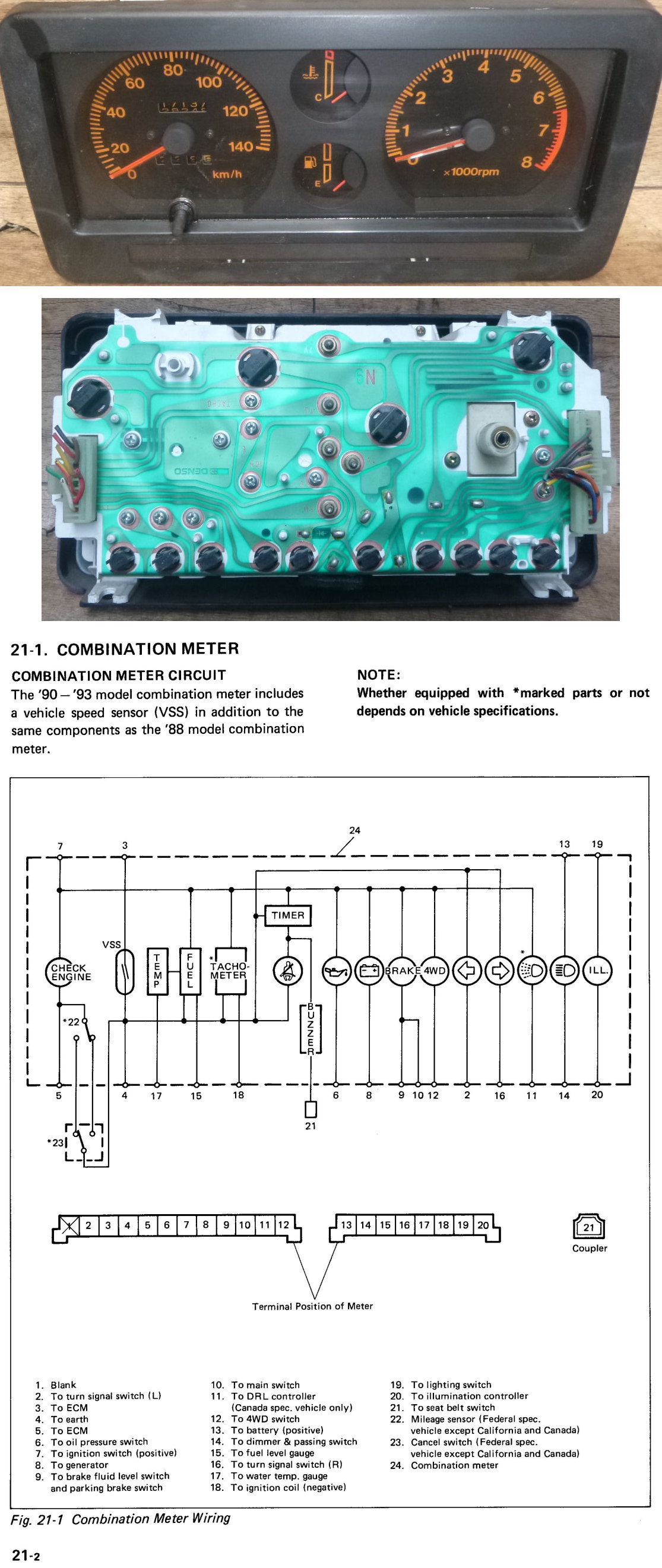

I've put this together for the type with the VSS, I believe earlier ones would still look the same.
- Attachments
-
- Sammy clocks 1992.jpg (434.68 KiB) Viewed 33484 times
2005-GV 1600se, "Hell" What do I know!
