Re: Wiring diagrams

Post by Darrell » Sun Jun 10, 2012 9:54 pm

I just use "photoimpact 10". Only because it came pre-installed on my last PC.
2005-GV 1600se, "Hell" What do I know!
Top
User avatar
Darrell
Suzuki, will you marry me?
Suzuki, will you marry me?
Posts: 2989
Joined: Wed Feb 23, 2011 7:54 pm
Location: south oxfordshire
Contact:
Contact Darrell

Re: Wiring diagrams

Post by Darrell » Sun Jun 10, 2012 10:07 pm

Just had a look at that fuse. I've added it as the acc supply from the ignition switch to the radio and ciggie lighter.
Attachments
2005-GV 1600se, "Hell" What do I know!
Top
User avatar
Darrell
Suzuki, will you marry me?
Suzuki, will you marry me?
Posts: 2989
Joined: Wed Feb 23, 2011 7:54 pm
Location: south oxfordshire
Contact:
Contact Darrell

Re: Wiring diagrams

Post by Darrell » Wed Nov 28, 2012 11:05 pm

Vitara SE1600 wiring diagram - From the workshop manual (1994 Print)
Attachments
Vitara wiring - Carb.jpg
Vitara wiring - Carb.jpg (1.82 MiB) Viewed 44480 times
2005-GV 1600se, "Hell" What do I know!
Top
User avatar
Darrell
Suzuki, will you marry me?
Suzuki, will you marry me?
Posts: 2989
Joined: Wed Feb 23, 2011 7:54 pm
Location: south oxfordshire
Contact:
Contact Darrell

Re: Wiring diagrams

Post by Darrell » Mon Jan 07, 2013 7:43 pm

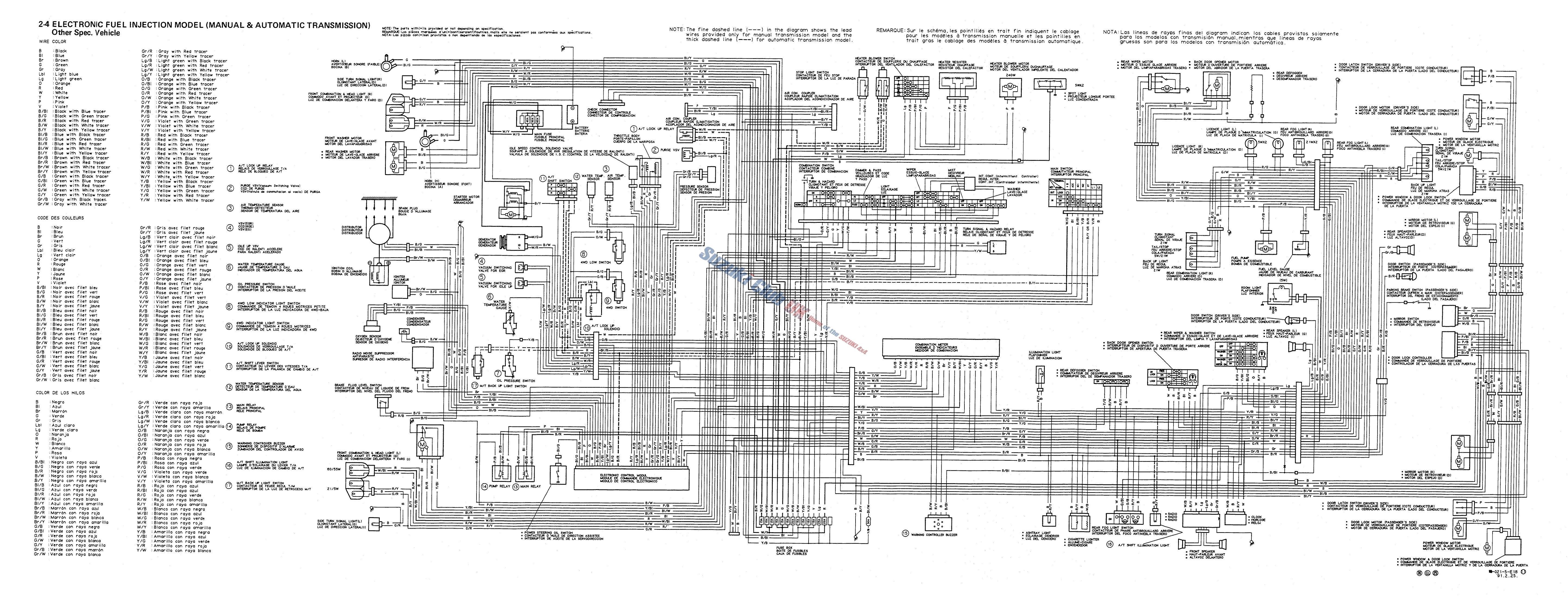

Vitara SE1600 wiring diagram (injection model) - From the workshop manual (1994 print)

Vit inj wiring diagram.jpg
Vit inj wiring diagram.jpg (2.4 MiB) Viewed 43082 times
Attachments

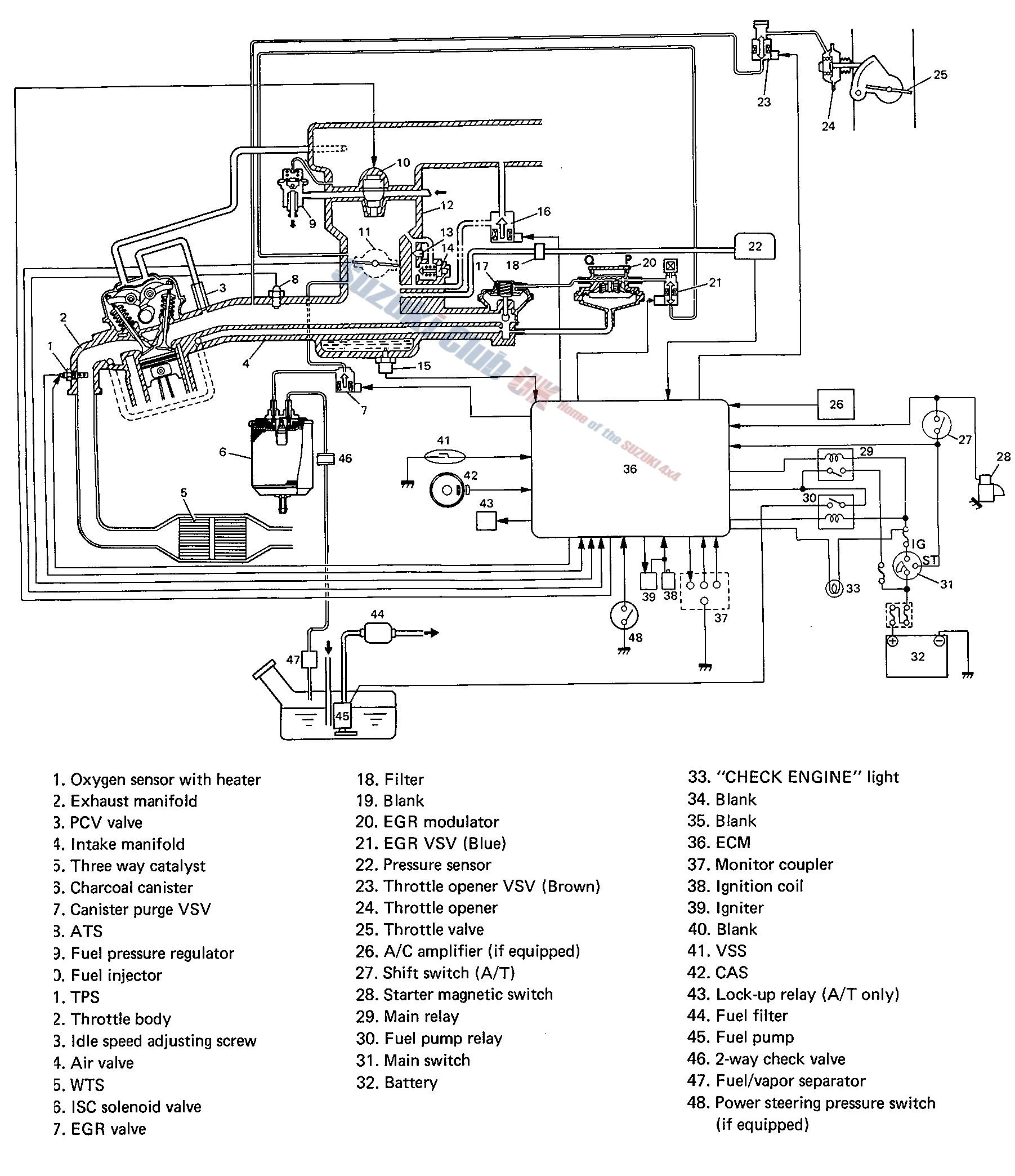

vit inj layout.jpg
vit inj layout.jpg (533.1 KiB) Viewed 43082 times
2005-GV 1600se, "Hell" What do I know!
Top
User avatar
ScottieJ
The Boss
The Boss
Posts: 11621
Joined: Tue Apr 15, 2008 12:13 pm
Location: Chippenham, wiltshire

Re: Wiring diagrams

Post by ScottieJ » Mon Jan 07, 2013 9:45 pm

Awesome nice work Darrell :thumbup:
Zuki Build

Steady as she goes!
Top
User avatar
ajowin
Got muddy boots
Got muddy boots
Posts: 1
Joined: Fri Jan 11, 2013 11:42 pm
Location: West Sussex/Hampshire border

Re: Wiring diagrams

Post by ajowin » Fri Jul 05, 2013 11:11 pm

I'm looking for the wiring diagram for the heating control panel for my B reg SJ410. If anything a photo showing the wire connection to the levers would be really useful. The wire connectors are circular! :doublethumbs:
We be enjoying our SuziB!
Top
User avatar
ScottieJ
The Boss
The Boss
Posts: 11621
Joined: Tue Apr 15, 2008 12:13 pm
Location: Chippenham, wiltshire

Re: Wiring diagrams

Post by ScottieJ » Fri Jul 05, 2013 11:44 pm

The only part of the heater control panel that has electrics is the fan speed switch, the rest are cable operated mechanical linkages. What is the problem with it?
Zuki Build

Steady as she goes!
Top
User avatar
Darrell
Suzuki, will you marry me?
Suzuki, will you marry me?
Posts: 2989
Joined: Wed Feb 23, 2011 7:54 pm
Location: south oxfordshire
Contact:
Contact Darrell

Re: Wiring diagrams

Post by Darrell » Sat Jul 06, 2013 4:18 pm

Are you after the cable linkage diagram rather than the wiring diagram ??, sounds like it :er:

Found this for a 83-84 model. The dash with the rotary speed control.
Attachments
1983-4 model.jpg
1983-4 model.jpg (135.17 KiB) Viewed 39670 times
2005-GV 1600se, "Hell" What do I know!
Top
baratten
Got muddy boots
Got muddy boots
Posts: 1
Joined: Fri Jul 11, 2014 11:40 am

Re: Wiring diagrams

Post by baratten » Fri Jul 11, 2014 11:43 am

Does anyone have a wiring diagram for '82s Samurai? Its different from the later ones, has a completely different fuse box.
Top
User avatar
Darrell
Suzuki, will you marry me?
Suzuki, will you marry me?
Posts: 2989
Joined: Wed Feb 23, 2011 7:54 pm
Location: south oxfordshire
Contact:
Contact Darrell

Re: Wiring diagrams

Post by Darrell » Fri Jul 11, 2014 11:30 pm

:welcome: to the club

Is it the type with just 4 cylindrical fuses.
I have a diagram in the workshop manual, although the join across the pages is not very clear.
I could try to photograph it and join it.
2005-GV 1600se, "Hell" What do I know!
Top
