Ignition barrell
Hello folks, sorted out the 1.6 engine and now I am at the point of wiring it back up, though unfortunately missed placed it and can't find it anywhere. Can I use the 410 one if so what connector block/colour wires would normally go to the ignition barrel on a 1.3 loom ? Many thanks, Eddie
-
Darrell
- Suzuki, will you marry me?
- Posts: 2988
- Joined: Wed Feb 23, 2011 7:54 pm
- Location: south oxfordshire
- Contact:
Re: Ignition barrell
1.3
- Attachments
-

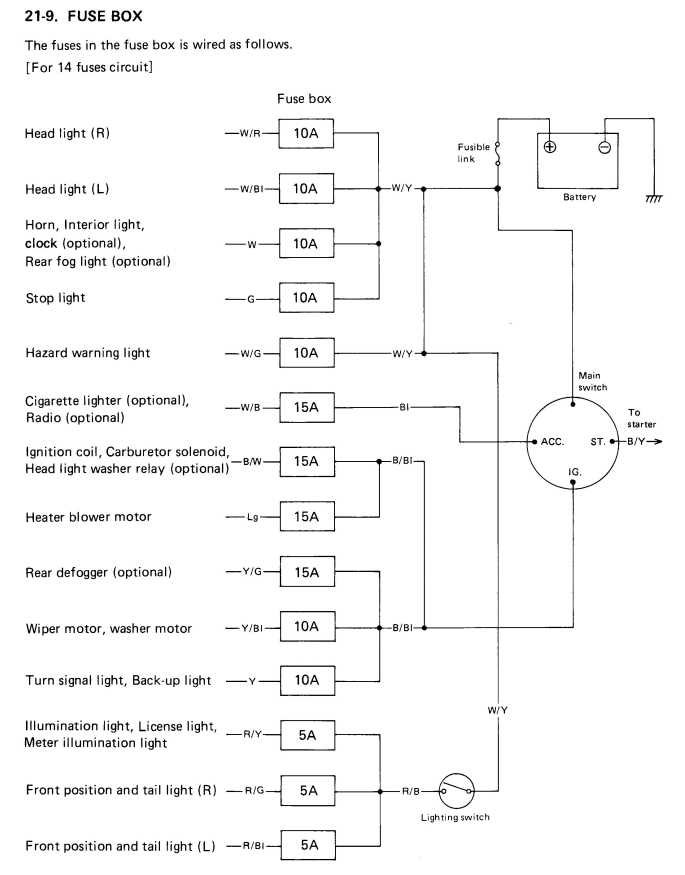

- Supply.jpg (65.73 KiB) Viewed 2667 times
2005-GV 1600se, "Hell" What do I know!
