Connector block ???

Post by The Bird Man » Sat Apr 12, 2014 8:29 pm

Evening Suzuki folks !!! Getting a little further on with my SJ. At the point now where I'm starting to wire everything back up, and it's a little confusing. Right, basically I'm stuck as to what a certain connector block should connect to. I had a mechanic friend down earlier for a little while to lend a hand and basically what ever this should connect to is stopping me from turning it over with the key but I don't know what I am supposed to be looking for, he said it could be anything but I can't find the other end so hoping someone can point me in the right direction. It should be pretty close to the dash. I've uploaded some picture to help what I'm attempting to explain. The first photo is of the connector block itself along with two others and the other picture is of some of the other interior wiring loom so you can see how close it is to the dash. Hopefully I make sense, haha, and hopefully someone will have the answer :)
Attachments

User avatar
Darrell
Suzuki, will you marry me?
Suzuki, will you marry me?
Posts: 2988
Joined: Wed Feb 23, 2011 7:54 pm
Location: south oxfordshire
Contact:

Re: Connector block ???

Post by Darrell » Sat Apr 12, 2014 8:48 pm

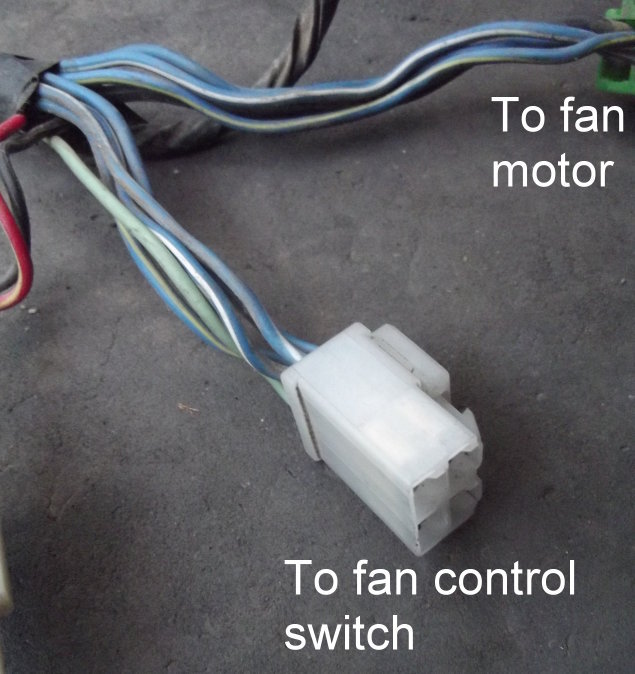

Only the connector to the heater/fan controls I'm afraid.
Attachments
2005-GV 1600se, "Hell" What do I know!

The Bird Man
Engaged 4wd low
Engaged 4wd low
Posts: 203
Joined: Fri Mar 15, 2013 2:51 pm
Location: Boston, Lincolnshire

Re: Connector block ???

Post by The Bird Man » Mon Apr 14, 2014 6:36 pm

All sorted !!! :D I can now turn her over with the key ! All this hard work is finally paying off, hopefully I will get a few more things done over the bank holiday weekend if the weather is nice to me.
