suzuki sj413 wiring problem.

[suzuki-rob]

I have two problems at the moment one being ;

does anyone know where the wires should go from condenser both sides if possible i know one side goes to coil but is it the plus or minus?

secondly I have a alternator that takes around plug but my plug is rectangle and wont fit. it has three wires two heavy duty white and yellow stripped wires and one white and red wire anyone that could shed some light on theses problems much appreciated

[Darrell]

The round plug to the alternator is connected like this.

Untitled .jpg (70.4 KiB) Viewed 12150 times

The condenser earths via the/it's body and the one wire is connected to the same wire as goes to the points.

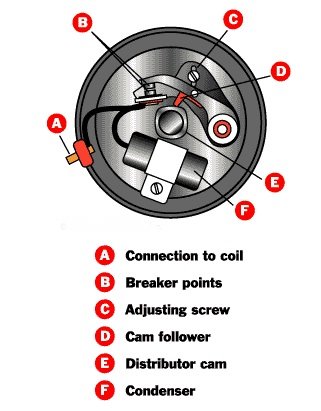

Points diagram.jpg (27.82 KiB) Viewed 12150 times

[suzuki-rob]

Cheers very big help

[Darrell]

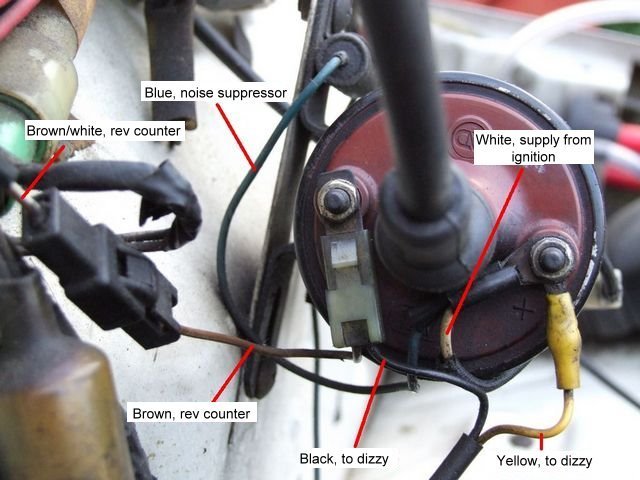

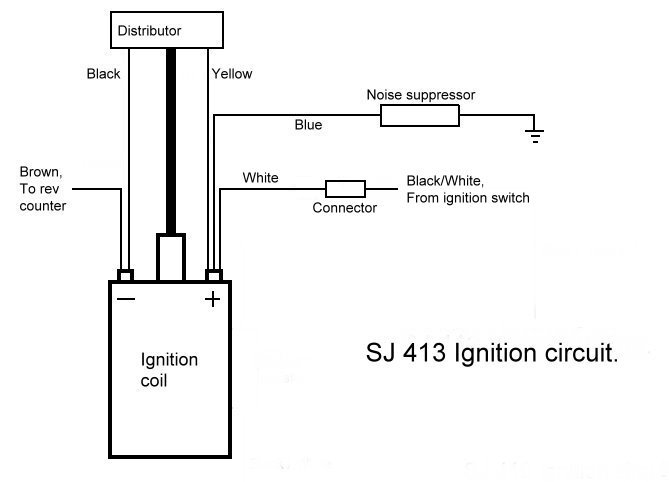

Re-read this and thought condensor 413 engine ????
So maybe it's the noise suppressor ??

[timwilks13]

quick question about that alternator image, in the round connector what is the middle top spade for?

[twiss]

I was going to mention that, I think on the one that just died on me and the one trotter kindly lent me, the terminal for the two fat cables is on the back of the alternator
and I'm pretty sure the top wire goes to the dash light on mine but I will check on that.
ive seen one before that only has the top (in the picture) wire and not the other two

[Darrell]

This is what's on mine..
Pin D does nowt

[twiss]

Just so you know I just checked my old one that I removed on friday...
The battery light wire was connected to the connection marked D in the above pic

Just bear in mind that some alternators maybe different, and if the dash battery light doesn't come on, it may be worth trying the other pins
