has this box got any thing to do with the running of it? looks sort of important
what do they need to run
Re: what do they need to run
has this box got any thing to do with the running of it? looks sort of important
-
Edweird
- Suzuki, will you marry me?
- Posts: 2531
- Joined: Sat Jan 23, 2010 11:04 pm
- Location: Brigg, North Lincolnshire
Re: what do they need to run
I think that's the dip-shit unit.
Makes your headlights come on dim when your side lights are on.
Makes your headlights come on dim when your side lights are on.
There's three ways of doing things:
The right way,
The wrong way
And my way, which is like the wrong way but faster.
The right way,
The wrong way
And my way, which is like the wrong way but faster.
-
Darrell
- Suzuki, will you marry me?
- Posts: 2989
- Joined: Wed Feb 23, 2011 7:54 pm
- Location: south oxfordshire
- Contact:
Re: what do they need to run
I'm going with ED on this one. The colours and location look right for dip dim unit. However the ones I've seen are different looking to what you have and looking at the wire colours, I think you may have an early 410.
The only problem is if you have an early 410 the voltage regulator is not built into the alternator and therefore that wiring needs to be kept.
Have you got one of these lurking about.
Dip-dim unit
The only problem is if you have an early 410 the voltage regulator is not built into the alternator and therefore that wiring needs to be kept.
Have you got one of these lurking about.
- 28-5-11023.jpg (76.51 KiB) Viewed 3548 times
- Attachments
-

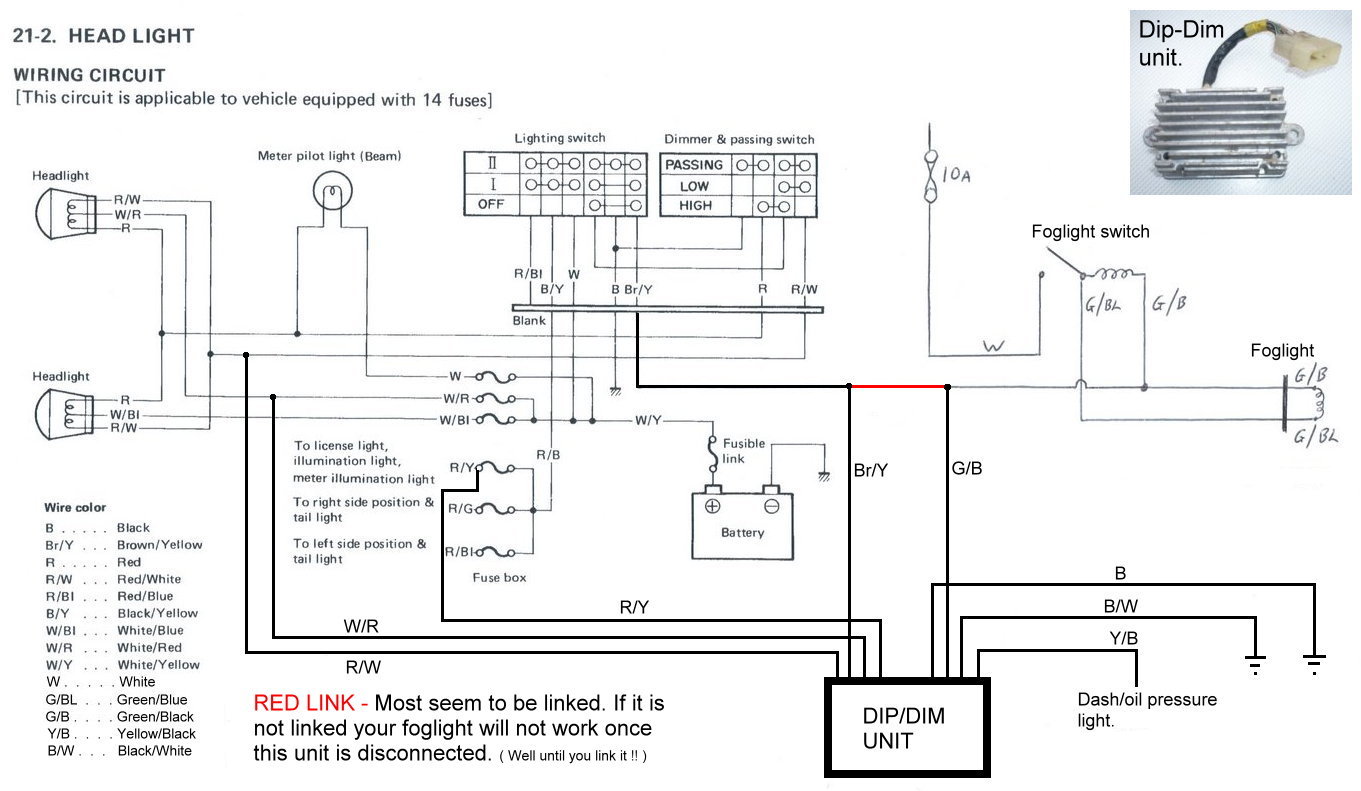

- dip-dim unit wiring.jpg (147.6 KiB) Viewed 3548 times
2005-GV 1600se, "Hell" What do I know!
Re: what do they need to run
were would i find the box? i'll have a look 2moz been looking at the alternator i got some kicking about might see if any fit
will check the light wiring colurs tomorow or fire it up and unplug it see if it cuts out?
will check the light wiring colurs tomorow or fire it up and unplug it see if it cuts out?
