In the process of hooking up the wires now my 1.6 is in & the tags I put on the wires have worn off.
Anyone know what wires go where on the starter (pics would be best)?
Starter moter wiring
-
lazy rambler
- Can I have a tow
- Posts: 296
- Joined: Sun May 22, 2011 8:00 pm
- Location: Aylsham, Norfolk
2" Shackles, 31" x 10.5" Buckshot Mudders, 1.6 8V with SU
-
twiss
- SCUK Computer Wizard
- Posts: 6110
- Joined: Mon Nov 08, 2010 2:28 pm
- Location: Birkirkara, Malta
- Contact:
Re: Starter moter wiring

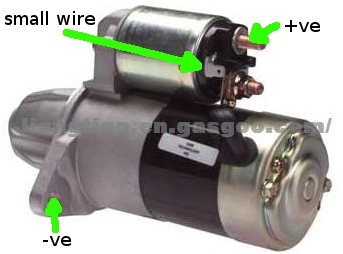

The battery +ve cable goes to the big terminal on the solenoid, the one furthest from the motor.
The battery -ve cable goes to one of the bolts that holds the starter onto the gearbox
There will be another connecting wire between the other big terminal on the solenoid that goes into the motor body.
Then there is just 1 small wire that goes onto the tiny terminal on the solenoid.
The battery -ve cable goes to one of the bolts that holds the starter onto the gearbox
There will be another connecting wire between the other big terminal on the solenoid that goes into the motor body.
Then there is just 1 small wire that goes onto the tiny terminal on the solenoid.
- Attachments
-
- starter.jpg (49.5 KiB) Viewed 8176 times
Twiss
'93 Suzuki Samurai Sport 1.6 16v SU. Virtual lift, spring under, 31s
'93 Maruti Gypsy MG410
"If brute force doesn't fix your problem, you aren't using enough of it."
'93 Suzuki Samurai Sport 1.6 16v SU. Virtual lift, spring under, 31s
'93 Maruti Gypsy MG410
"If brute force doesn't fix your problem, you aren't using enough of it."
Re: Starter moter wiring
+feed from battery to + terminal as usual
Black/Yellow tracer from loom to the spade terminal
earth as in twiss's pic
-
lazy rambler
- Can I have a tow
- Posts: 296
- Joined: Sun May 22, 2011 8:00 pm
- Location: Aylsham, Norfolk
Re: Starter moter wiring
Wired up and working now. Thanks.
