wiring diagram for the ignition barrell?

[Jay18]

so im fitting an immobiliser and need a diagram for the ignition switch/barrel so i can have the immobiliser switch the start wire via a relay...

or would it be easier to switch the solenoid?

and i cant switch the fuel pump considering its mechanical lol...

[Darrell]

How many circuits is it immobilizing, normally it's 2. The coil supply and the wire to starter solenoid.

[Jay18]

well it only comes with one relay so i think ill be doing just the coil supply..

and if anyone knows the wiring for the hazard switch then i can do the hazard light feature for when i use the remote central locking..

[Darrell]

I would just break into the positive supply to the coil (black/white wire)

[Darrell]

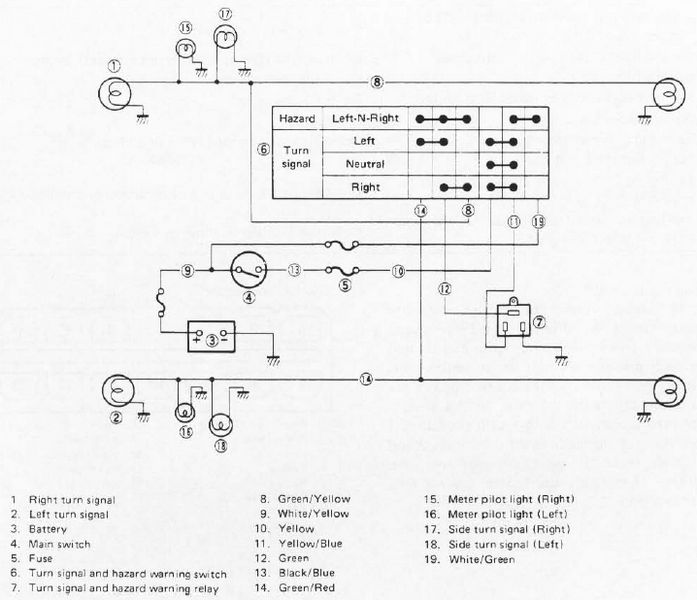

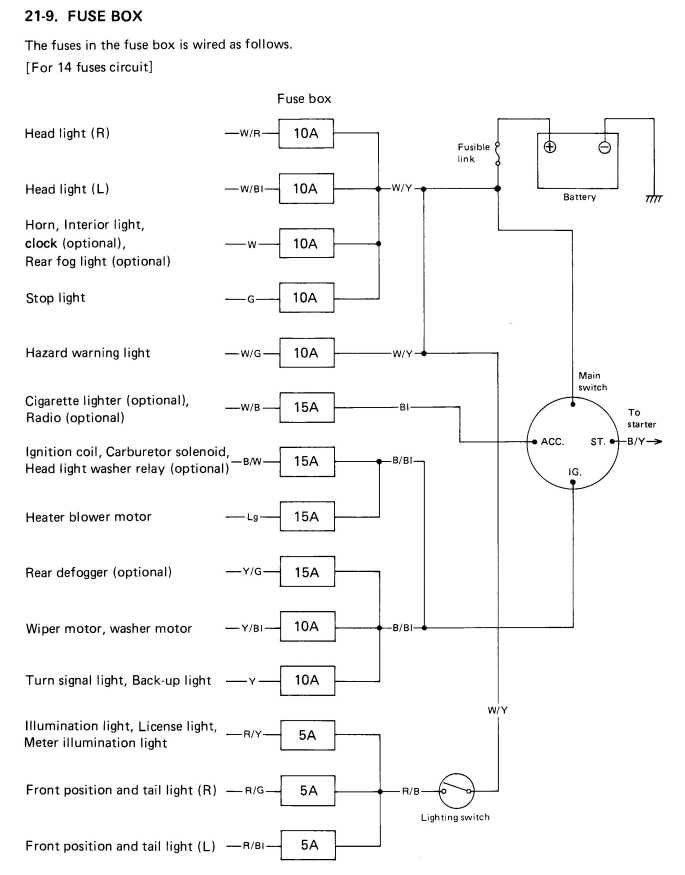

Here's a diagram anyway

[Jay18]

do you know the colour of the hazard light switch wire i need to use?

[Darrell]

I'm afraid to say that no single wire will make the hazard lights work. Well not that I can see.

[Darrell]

Could you post up the wiring instructions.

[Jay18]

the instructions are not the best but here they are..

http://www.sniperautomotive.com/support ... Manual.pdf

cant i just wire into the hazard switch?

[Darrell]

Am I right in thinking you have all this

sniper x2.jpg (73.99 KiB) Viewed 19480 times


But you only want to use the immobilizer ??
