i ave electrical problem

highlander1 · Post by **highlander1** » Tue Feb 10, 2015 9:02 pm

Hi i own 51 plate grand vitra 2.0td which keeps blowing indicator / reverse light fuse checked all bulbs earths even changed indicater relay ok till to start car then blows fuse any suggestions pls help

Darrell · Post by **Darrell** » Tue Feb 10, 2015 11:12 pm

Welcome to the club.
I can only advise chasing the fault down with a multimeter

.

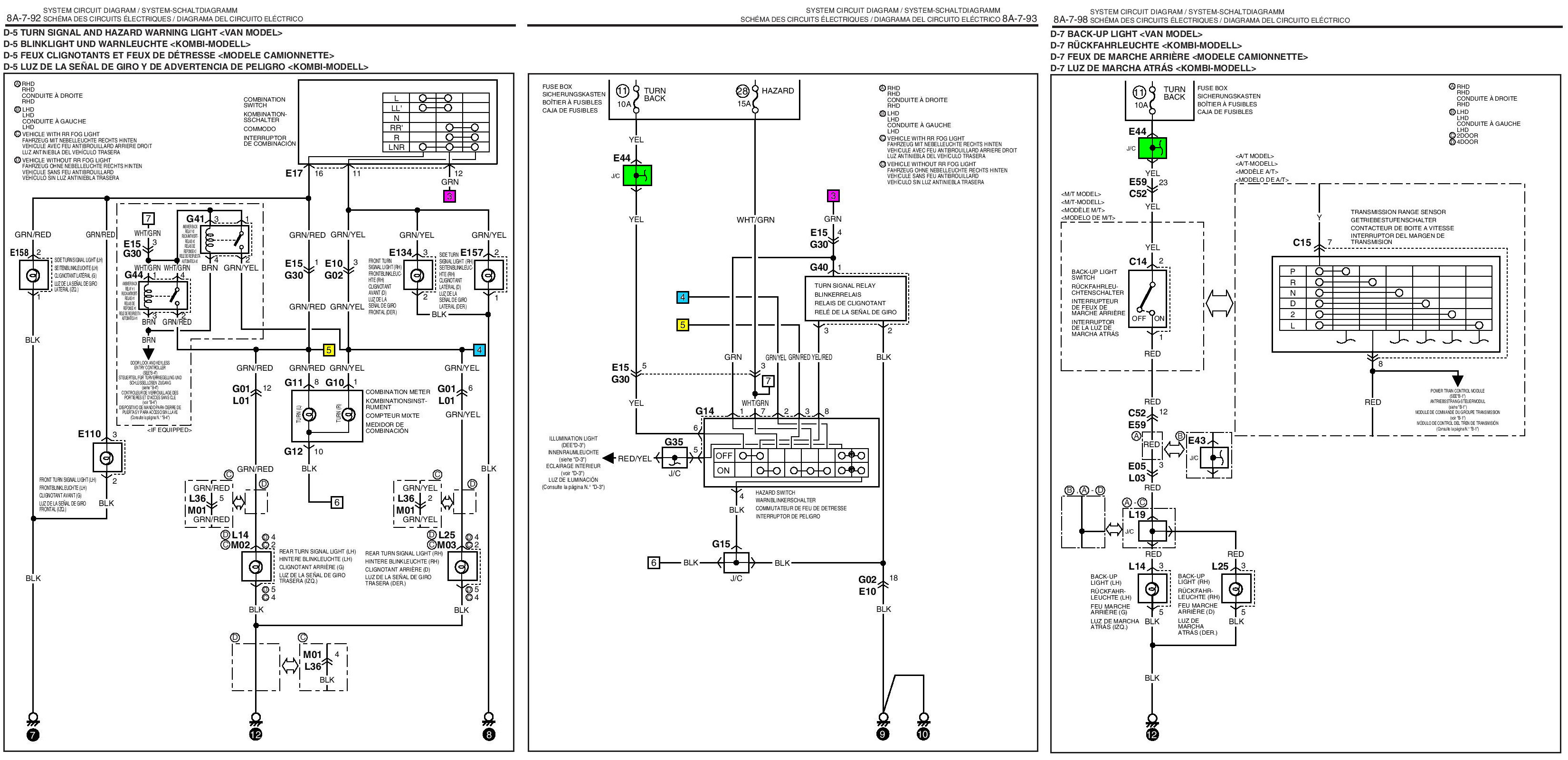

I have taken the relevant sections from the workshop manual and coloured a few points to clarify connections a little.
There is different 2.0l diesel engines fitted but I hope/assume the indicators/reverse circuits are the same.

Brrok_lands · Post by **Brrok_lands** » Tue Feb 10, 2015 11:38 pm

Could be a chaffed wire somewhere that shorts out when it moves with the vibration from the engine. I’m afraid something like that usually takes a lot of chasing down.

Anton · Post by **Anton** » Wed Feb 11, 2015 1:49 pm

A worn wire causing a short would be my guess too.

Darrell · Post by **Darrell** » Mon Feb 16, 2015 11:11 pm

Why do these people ask questions so we spend 20min extracting/cropping/converting and we never hear sod all again. This is not an isolated example

Rant over.........

Well for now...........

Anton · Post by **Anton** » Mon Feb 16, 2015 11:16 pm

I can only guess he either found the problem, and forgot to come back to say thanks, or his GV detonated and now he's *unable* to come back...

Darrell · Post by **Darrell** » Mon Feb 16, 2015 11:22 pm

Well I hope it detonated

Here's another one, even went out in the cold with a soddin torch to get these pics.........

http://forum.suzukiclubuk.co.uk/vi ... 7&start=10

Sorry still ranting

Anton · Post by **Anton** » Mon Feb 16, 2015 11:28 pm

ROBBIE · Post by **ROBBIE** » Tue Feb 17, 2015 9:42 am

Darrel have you got any diagrams of Jimny wiring, promise I will say thank you

Darrell · Post by **Darrell** » Tue Feb 17, 2015 7:58 pm

Loads

I have these manuals in my collection (pdf only)

: Jimny.png (27.27 KiB) Viewed 9513 times

What you after.
I assume any diagrams would be from the 1998 print (yours being a 2000), unless they did any more workshop manuals before the 2004 print ??
